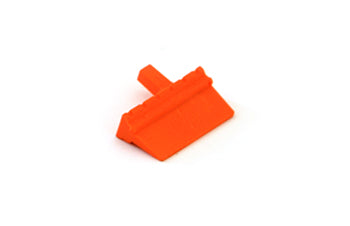

Crown 6-PIN Deutsch Dtm Connector
CR 062756-004
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Crown OEM connector CR 062756-004 is a 6-pin Deutsch DTM series plug designed for electric lift truck applications. Features tin plated brass contacts, flame-retardant polyamide housing, and supports up to 25A per contact. Compatible with 4-6mm² wires and TE W6/W9 circuit breakers for positive locking in high-current bus bar systems.
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Model | RR5200 AC, SH5500 AC, SHR5500 AC |
| Part Number | CR 062756-004 |
| Application | Electric lift truck applications |
| Wire Compatibility | 4-6mm² wires |
| Circuit Breaker Compatibility | TE W6/W9 circuit breakers |
Electrical Specifications
| Current Carrying Capacity | Up to 25 Amps per contact |
| Connector Type | 6-pin Deutsch DTM series plug |
Additional Specifications
| Contact Material | Tin plated brass |
| Housing Material | Flame-retardant polyamide |
| Locking Mechanism | Positive locking in high-current bus bar systems |
Frequently Asked Questions
Q: What models is the CR 062756-004 compatible with?
A: The CR 062756-004 is compatible with Crown electric lift truck models including RR5200 AC, SH5500 AC, and SHR5500 AC. Ensure your equipment uses a deutsch dtm connector with the correct pin configuration before ordering.
Q: What materials are used in the CR 062756-004?
A: The CR 062756-004 features tin plated brass contacts and a flame-retardant polyamide housing. These materials provide corrosion resistance, reliable conductivity, and safety in electrical applications.
Q: How do I know if the CR 062756-004 is the right replacement part for my equipment?
A: To determine if the CR 062756-004 is suitable, check that your equipment uses a deutsch dtm connector and confirm the pin configuration matches. It is designed for use in Crown electric lift truck applications.
Q: What are the electrical specifications of the CR 062756-004?
A: The CR 062756-004 supports up to 25 amps per contact, making it suitable for high-current bus bar connections and power distribution systems in electric lift trucks.
Q: What types of circuit breakers is the CR 062756-004 designed to work with?
A: The CR 062756-004 is designed to work with te w6 and w9 circuit breakers, providing positive locking in high-current bus bar systems for secure electrical connections.
