Product Description

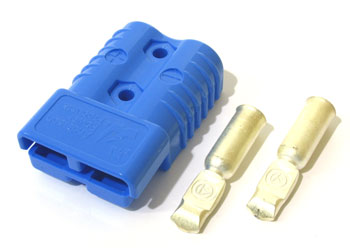

CONNECTOR (SB175 1/0 BLUE)
Specifications
Physical Specifications
| Connector Series | SB175 |
| Cable Size (AWG) | 1/0 |
| Color | Blue |
| Current Rating | 175A Continuous |
| Voltage Rating | 600VDC |
| Gender | Genderless (Unisex) |
| Mating Type | Compatible with other SB175 1/0 connectors |
Compatibility
| Application | Electric Lift Truck Battery Harness |
Frequently Asked Questions
Q: What is the 2I5327 connector used for?
A: The 2I5327 is a blue-colored SB175 1/0 connector designed for high-amperage battery harnesses on electric lift trucks. The blue housing distinguishes it from other SB175 variants and provides visual identification on the battery system.
Q: What amperage is the 2I5327 rated for?
A: The 2I5327 is part of the SB175 series and is rated for 175A continuous current at 600VDC. It is designed for 1/0 AWG cable termination in material handling equipment battery systems.
Q: How does 2I5327 compare to 2I5326?
A: Both 2I5327 and 2I5326 are SB175 1/0 connectors with identical electrical ratings (175A, 600VDC). The difference is color: 2I5327 is blue while 2I5326 is gray. Select based on your equipment color specification or cross-reference requirements.
Q: Is the 2I5327 genderless like other SB175 connectors?
A: Yes. The 2I5327 is a genderless connector. It can mate with identical 2I5327 connectors or other compatible SB175 1/0 variants without separate male or female components.
