Product Description

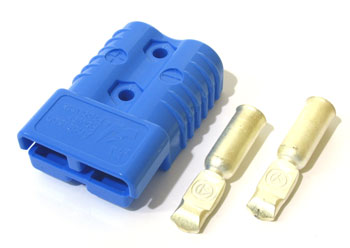

Industrial connector compliant with Anderson SB175 series, designed for 48V electric lift truck power systems. Blue keyed housing, rated 175A/600V AC/DC, compatible with #4 to 1/0 AWG wire, silver-plated copper contacts. OEM part 6326G1.
Specifications
Electrical
| Current Rating | 175 amperes continuous (UL) |
| Voltage Rating | 600 volts AC/DC (UL) |
Material
| Spring Material | Stainless steel contact retention |
Part Numbers
| OEM Part Number | 6326G1 |
Frequently Asked Questions
Q: Is the 3054317 connector rated for 48V electric lift truck systems?
A: Yes. The 3054317 is an Anderson SB175 series connector rated 175A at 600V AC/DC and is designed specifically for 48V electric lift truck power systems. The blue keyed housing is standard for SB175 Anderson connectors.
Q: What is the OEM part number equivalent for the 3054317?
A: The OEM part number for the 3054317 is 6326G1. Use this number when cross-referencing with original equipment manuals or contacting manufacturers for compatibility verification.
Q: What wire gauges does the 3054317 accept?
A: The 3054317 accepts #4 to 1/0 AWG wire. This range accommodates most standard power cables used in 48V electric lift truck battery systems. Match your cable gauge to the connector rating for safe current delivery.
Q: Why does the 3054317 use silver-plated copper contacts?
A: Silver-plated copper contacts minimize electrical resistance and prevent corrosion in battery-powered equipment. This material maintains lower contact resistance over thousands of connect-disconnect cycles, reducing heat generation and improving system efficiency.
Q: Will the 3054317 fit Anderson SB175 equipment across different lift truck brands?
A: The SB175 Anderson series is a standardized connector used across multiple electric lift truck brands including Crown, Toyota, Raymond, and Yale. Verify your equipment uses Anderson SB175 series connectors before ordering to ensure compatibility.
