Product Description

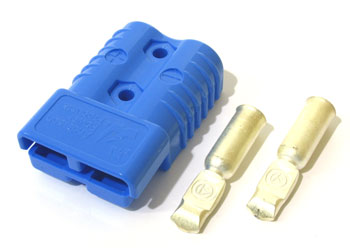

Connector (SB175 1/0 Blue), OEM equivalent to 941-BK, supports 175A continuous at 600V AC/DC, accepts #4 to 1/0 AWG stranded copper cable, features blue key, genderless SB175 housing, and stainless steel retention springs. Compatible with electric lift truck power circuits and 48VDC battery connections.
Specifications
Electrical
| Current Rating (Continuous) | 175A at 600V AC/DC (UL 1977, 1/0 AWG wire) |
| Voltage Rating | 600V AC/DC (UL 1977) |
| Pulse Current Capability | 280A (maximum, wire to wire, 1/0 AWG) |
Material
| Material Specification | Polycarbonate housing with stainless steel contact retention springs |
Part Numbers
| OEM Part Number | 941-BK (Anderson Power Products) |
| Cross-Reference Part Numbers | Replaces 941, supersedes 941-BK, equivalent to Anderson 941 |
| Manufacturer Part Number | 941-BK |
Frequently Asked Questions
Q: What is the continuous current rating for SKU 3060661?
A: This connector is rated 175A continuous at 600V AC/DC per UL 1977 specification when used with 1/0 AWG stranded copper cable.
Q: What wire gauge does the 3060661 connector accept?
A: This connector accepts #4 AWG to 1/0 AWG stranded copper wire, making it suitable for high-current battery and power circuit applications.
Q: What is the OEM equivalent part number for SKU 3060661?
A: The OEM equivalent is Anderson Power Products 941-BK. This SKU also replaces the earlier 941 designation and is equivalent to Anderson 941.
Q: What color key does the 3060661 have and what does it mean?
A: This connector has a blue key indicating it is part of the SB175 1/0 series. The blue housing provides voltage circuit identification for proper mating in 48VDC battery systems.
Q: What material are the contacts in the 3060661 connector?
A: The connector features stainless steel retention springs with genderless SB175 housing, designed for robust mating cycles in electric lift truck power circuits.
Q: Is the 3060661 suitable for 48V battery systems in electric lift trucks?
A: Yes. The 600V AC/DC rating and 175A continuous capacity make it fully compatible with 48VDC battery connections used in electric pallet jacks and lift trucks.
