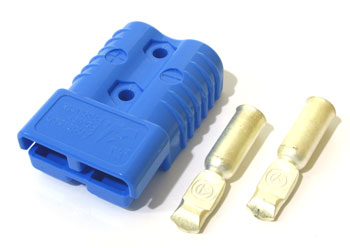

SB175 1/0 Blue Connector - OEM for Electric Lift Trucks
33-10140
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
SB175 1/0 blue connector, OEM part number 33-10140, engineered for electric lift truck applications. Features include 280A current rating (UL), 600V voltage rating, silver-plated copper contacts, PC blue housing, and compatibility with Anderson Power 941-BK standard. Suitable for 1/0 AWG wire installations.
Specifications
Dimensional
| Contact Wire Entry | Designed for 1/0 AWG conductor entry |
Electrical
| Current Rating (1/0 AWG) | 280 Amps UL, 175 Amps CSA |
| Voltage Rating | 600V AC/DC (UL 1977) |
Material & Construction
| Spring Material | Stainless steel |
Part Numbers
| Cross-Reference Part Numbers | Anderson Power Products 941-BK |
| Contact Series Tested | 1382 |
Frequently Asked Questions
Q: What is the current capacity of the SB175 1/0 blue connector?
A: The SB175 1/0 connector (SKU 33-10140) is rated at 280 Amps UL and 175 Amps CSA for the 1/0 AWG wire gauge. This current rating applies to electric lift trucks and material handling equipment using 1/0 conductor cables. Verify your equipment amperage requirement matches this specification before ordering.
Q: What is the voltage specification for this connector?
A: The SB175 1/0 blue connector (SKU 33-10140) is rated for 600V AC/DC according to UL 1977 standards. This voltage rating applies to battery systems commonly found in electric lift trucks operating at nominal system voltages.
Q: What wire gauge does this connector accept?
A: The SB175 1/0 connector (SKU 33-10140) is engineered specifically for 1/0 AWG conductor wire entry. Do not use this connector with smaller or larger gauge wire, as mismatched gauges reduce contact reliability and current-carrying capacity.
Q: What is the equivalent Anderson Power Products part number?
A: The SB175 1/0 blue connector (SKU 33-10140) is equivalent to Anderson Power Products part number 941-BK and meets the Anderson Power standard specifications. This cross-reference confirms compatibility with equipment originally specified for the 941-BK connector.
Q: What material are the contacts made from?
A: The SB175 1/0 connector features silver-plated copper contacts that provide superior electrical conductivity and corrosion resistance. Silver plating ensures low contact resistance and long-term reliability in electric lift truck battery connector applications.
Q: What spring material is used in this connector?
A: The SB175 1/0 blue connector (SKU 33-10140) uses stainless steel springs for contact retention and electrical contact force. Stainless steel provides durability and corrosion resistance in battery connector applications, maintaining contact pressure across equipment operating temperature ranges.
