Product Description

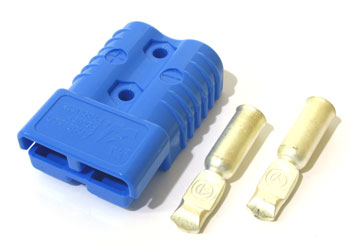

Anderson Power Products SB175 blue connector for 1/0 AWG wire, OEM part 6326G1, designed for high-current electric lift truck service at 175A and 600V. Features silver-plated copper contacts, 10,000-cycle rated, blue housing keyed for voltage, with robust mechanical contact retention.
Specifications
Electrical Specifications
| UL Current Rating | 175A continuous duty |
| Maximum Surge Current | Up to 280A (non-UL, application dependent) |
| UL Voltage Rating | 600V AC or DC |
| Connector Poles | 2 pole genderless |
Mechanical Specifications
| Contact Retention Force | 300 lbf (static pullout) |
| Mating Cycles (No Load) | 10,000 connect/disconnect cycles |
| Disconnect Force | Approx. 25 lbf |
| Housing Material | Polycarbonate, UL94 V-0 |
| Spring Material | Stainless steel |
Part Numbers & Compatibility
| OEM Part Number | 6326G1 |
| Connector Model | SB175 |
Frequently Asked Questions
Q: What is the continuous current rating for the 49120 SB175 blue connector?
A: The 49120 carries a 175A continuous duty UL current rating at 600V AC or DC. It can handle non-UL surge current up to 280A depending on application. This makes it suitable for main battery disconnect and contactor circuits in electric lift trucks, forklifts, and order pickers where high sustained current flow is required.
Q: What OEM part number does the 49120 replace?
A: The 49120 is a direct equivalent to OEM part 6326G1 from Anderson Power Products. It is a SB175 blue connector with the same specifications, silver-plated copper contacts, and keyed design for voltage safety.
Q: What is the contact retention force and mating cycle rating?
A: The 49120 features a 300 lbf static pullout contact retention force to ensure secure mechanical connection in high-vibration industrial environments. It is rated for 10,000 mating cycles, making it durable for frequent battery disconnect and reconnect operations common in fleet maintenance.
Q: What wire size does the 49120 connector accommodate?
A: The 49120 is designed for 1/0 AWG cable, the standard main battery cable size on electric lift trucks. The connector is keyed with blue housing to prevent mismatched voltage connections in multi-voltage fleets.
