Product Description

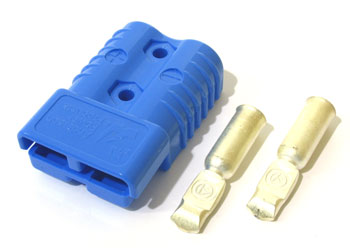

The 1/0 Blue battery connector is a 175A-rated Anderson SB175 pattern connector designed for 24V electric lift truck systems. Features impact-resistant polycarbonate housing with silver-plated copper contacts and genderless flat wipe design for reliable battery connections. Mechanical keying ensures voltage discrimination, preventing accidental mismatches. Rated for up to 10,000 mating cycles, making it ideal for frequent connection and disconnection in material handling operations. Compatible with 1/0 AWG cables.
Specifications
Electrical
| Rated Continuous Current | 175A |
| Rated Maximum Voltage | 600VDC |
| Connector Type | Anderson SB175 Pattern |
| Cable Gauge Compatibility | 1/0 AWG |
| Applications | Designed for electric lift trucks, material handling equipment, and forklift battery connections |
Frequently Asked Questions
Q: What is the rated current and voltage of the 7822400?
A: The 7822400 is rated for continuous current of 175A at a maximum voltage of 600VDC. It is compatible with 1/0 AWG cables and designed for electric lift trucks and battery connections.
Q: Which cable gauge does this battery connector accept?
A: The 7822400 is designed for 1/0 AWG cables only. Do not attempt to use it with different gauge cables, as this will result in poor electrical contact and potential damage.
Q: What is the mechanical keying feature and why does it matter?
A: The mechanical keying prevents incorrect voltage connections by blocking mating with incompatible connector types. This protects equipment from electrical damage due to reverse polarity or mismatched voltage connections.
Q: How many mating cycles is this connector rated for?
A: The 7822400 is designed for up to 10,000 mating cycles, making it suitable for frequent connection and disconnection in material handling operations.
Q: Which electric lift truck manufacturers use the Anderson SB175 connector?
A: The Anderson SB175 pattern is a standard connector used across multiple manufacturers including Hyster, Yale, Crown, Toyota, Clark, Raymond, and other electric lift truck and pallet jack manufacturers. Verify your specific equipment model uses this standard pattern before ordering.
Q: Can this connector be used with manual pallet jacks?
A: No. The 7822400 is designed exclusively for 24V electric lift truck systems. Manual (hand-powered) pallet jacks do not use electrical connectors.
