Product Description

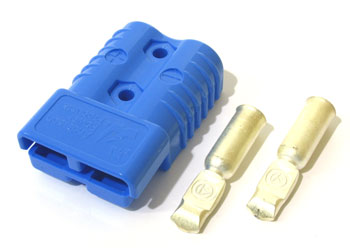

SB175 type battery connector for electric lift trucks, rated 175A at 600VDC, compatible with 1/0 AWG cable, features silver-plated copper crimp contacts in impact-resistant polycarbonate blue housing, UL94 V-0, with mechanical keying and ≥10,000 mating cycles.
Specifications
Electrical
| Rated Current | 175A maximum continuous |
| Rated Voltage | 600VDC |
| Wire Gauge Compatibility | 1/0 AWG |
Physical & Material
| Contact Material | Silver-plated copper |
| Housing Material | Impact-resistant polycarbonate |
| Housing Color | Blue |
| Flammability Rating | UL94 V-0 |
Features
| Connector Type | SB175 (Anderson-type) |
| Mechanical Keying | Yes |
| Mating Cycles Rating | 10,000 cycles |
Frequently Asked Questions
Q: What are the electrical specifications of SKU 7822401?
A: SKU 7822401 is rated for maximum continuous current of 175A at 600VDC. It features silver-plated copper crimp contacts for superior conductivity and is compatible with 1/0 AWG cables.
Q: What is the UL94 V-0 flammability rating and why is it important?
A: UL94 V-0 certification means the polycarbonate housing meets strict flammability standards for material handling equipment. This ensures the connector housing resists flame propagation and meets safety requirements for industrial environments.
Q: Is SKU 7822401 compatible with SKU 7822400?
A: Both SKUs are SB175-type battery connectors rated 175A at 600VDC with similar specifications. Verify your specific equipment requirements to confirm interchangeability with existing connections.
Q: Why are the contacts silver-plated?
A: Silver-plated copper contacts provide superior electrical conductivity and corrosion resistance. This reduces voltage drop across the connection and extends the connector lifespan in material handling environments.
Q: How many connection cycles will this connector withstand?
A: SKU 7822401 is rated for approximately 10,000 mating cycles. With proper use and maintenance, this provides reliable performance for the lifespan of the equipment.
