Product Description

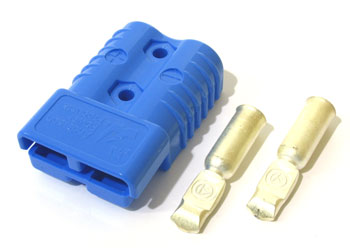

The P843-0004 SB175 Blue Battery Connector is a heavy-duty 1/0 AWG connector designed for electric pallet jacks, walkie stackers, and forklifts. Rated for 175 amps continuous at 600VDC maximum, this connector delivers reliable power distribution in demanding warehouse and loading dock environments. The blue color-coded design prevents reverse polarity connections and ensures safe, consistent performance. Silver-plated copper alloy contacts housed in impact-resistant ABS provide corrosion resistance and longevity in indoor and outdoor applications. Direct replacement compatible with Crown, Toyota, Yale, Hyster, Raymond, and other major lift truck platforms.
Specifications
Physical Specifications
| Connector Type | SB175 |
| Cable Gauge | 1/0 AWG |
| Amperage Rating (Continuous) | 175 Amps |
| Maximum Voltage | 600VDC |
| Contact Material | Silver-plated copper alloy |
| Housing Material | Impact-resistant ABS plastic |
| Color | Blue |
Compatibility
| Applications | Electric pallet jacks, walkie stackers, forklifts, reach trucks |
Frequently Asked Questions
Q: What is the P843-0004 blue battery connector used for?
A: The P843-0004 is a 1/0 AWG SB175 connector designed for high-amperage battery connections in electric pallet jacks, walkie stackers, and forklifts. It delivers reliable power distribution for 24V, 36V, and 48V lift truck battery systems.
Q: What is the amperage rating for the P843-0004?
A: The P843-0004 is rated for 175 amps continuous current capacity, making it suitable for standard electric pallet jacks and lift trucks from manufacturers including Crown, Toyota, Yale, Hyster, and Raymond.
Q: What cable size does the P843-0004 connector accept?
A: The P843-0004 is designed for 1/0 AWG cable only. Verify your existing cable gauge before ordering to ensure proper fit and electrical safety.
Q: Can I use the blue P843-0004 connector with different colored connectors on the same equipment?
A: The P843-0004 blue connector should be used consistently with matching polarity on your equipment. The color coding helps prevent reverse polarity connections. Always verify your wiring diagram before mixing connector colors on the same circuit.
Q: What is the maximum voltage this connector can handle?
A: The SB175 series, including the P843-0004, is rated for 600VDC maximum, covering standard 24V, 36V, and 48V electric lift truck battery systems.
Q: What materials are the P843-0004 contacts and housing made from?
A: The P843-0004 features silver-plated copper alloy contacts housed in impact-resistant ABS plastic, providing corrosion resistance and reliable conductivity in warehouse and outdoor environments.
Q: What equipment makes is the P843-0004 compatible with?
A: The P843-0004 is a direct replacement connector compatible with electric pallet jacks and forklifts from Crown, Toyota, Yale, Hyster, Raymond, Jungheinrich, and other major lift truck manufacturers using standard 1/0 AWG SB175 connections.
