Product Description

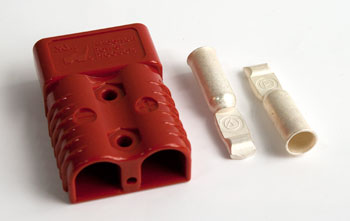

SB175 1/0 AWG Red connector for electric lift trucks. Rated to 280 Amps, 600V AC/DC, UL94 V-0 housing, compatible with 12 AWG to 1/0 AWG cables. Interchangeable with Anderson 949/Powerwerx SB175RED standard plugs.
Specifications
Electrical
| Current Rating (UL Wire to Wire) | 280 Amps maximum (Wire to Wire using 1/0 AWG cable) |
| Current Rating (CSA Wire to Wire) | 175 Amps |
| Voltage Rating | 600V AC/DC (UL 1977) |
Material & Construction
| Boot Material | Thermoplastic Elastomer (TPE) |
| Housing Rating | UL94 V-0 |
| Cable Compatibility | 12 AWG to 1/0 AWG cables |
Part Numbers & Cross-References
| Part Number Reference | SB175 |
| Manufacturer Part Number | 949 |
| Interchangeable With | Anderson 949, Powerwerx SB175RED standard plugs |
Frequently Asked Questions
Q: What is the current rating for the SB175 1/0 AWG red connector?
A: UL wire-to-wire current rating is 280 Amps maximum using 1/0 AWG cable. CSA wire-to-wire rating is 175 Amps. Voltage rating is 600V AC/DC (UL 1977).
Q: What are the cross-reference part numbers for this red connector?
A: This connector is part number SB175 (direct replacement for Anderson 949) and is interchangeable with Powerwerx SB175RED standard plugs. The reference designation is 5419930.
Q: What is the boot material and why does it matter?
A: The boot is constructed from Thermoplastic Elastomer (TPE), which provides flexibility, environmental sealing, and resistance to oils and temperature extremes common in electric lift truck applications.
Q: What cable types is this connector compatible with?
A: This connector is compatible with 12 AWG to 1/0 AWG cables. The red color designation indicates positive polarity. Verify cable gauge and insulation type match your equipment and electrical system specifications.
Q: How durable is this connector for industrial use?
A: The UL94 V-0 housing rating indicates superior flammability resistance. Combined with TPE boot material, this connector is designed for heavy-duty industrial service in electric pallet jacks, electric forklifts, and battery charging systems. Replace if contacts corrode or housing cracks.
Q: Which lift trucks and pallet jacks use this connector?
A: The SB175 is standard equipment on 24-volt electric walkie pallet jacks and forklifts from major manufacturers including Hyster, Yale, Crown, and Clark equipment. Verify compatibility with your specific equipment model before ordering.
