Product Description

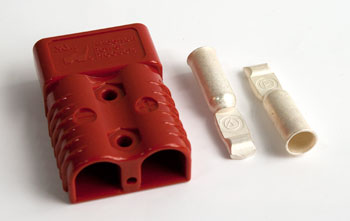

SB175 series connector, SKU 9750830, is a genderless industrial plug designed for up to 280 amps at 600V AC/DC and compatible with 1/0 AWG conductors; features polycarbonate housing, silver-plated copper contacts, UL94 V-0 flammability rating, and keyed red design for electric lift truck applications. Cross-references Anderson 949 part number.
Specifications
Electrical Specifications
| Rated Current | 280 amps (UL 1977: wire to wire, 1/0 AWG) |
| Voltage Rating | 600V AC/DC (UL 1977) |
Material & Construction
| Spring Material | Stainless steel |
Mechanical Specifications
| Mating Cycles | 1,500 cycles minimum |
Part Numbers
| Equivalent Part Numbers | 949, 949-BK, 122204 |
| Compatible Models | SB175 series connectors for battery and DC power applications |
Performance Specifications
| UL Environmental Protection | IP64 |
Frequently Asked Questions
Q: What amperage rating does the 9750830 SB175 connector handle?
A: The 9750830 is rated for 280 amps at 600V AC/DC with 1/0 AWG conductors per UL 1977 wire-to-wire specifications. This makes it suitable for high-current battery and DC power applications on electric lift trucks.
Q: Is the 9750830 connector genderless and what does that mean?
A: Yes, the 9750830 is a genderless industrial plug, meaning it can mate with itself without requiring a separate male/female connector design. This simplifies inventory and reduces connection complexity in electric lift truck battery systems.
Q: What are the cross-reference part numbers for the 9750830?
A: The 9750830 is equivalent to Anderson 949, 949-BK, and Amphenol 122204. Verify your equipment documentation before ordering to confirm compatibility.
Q: What material are the contacts on the 9750830 connector?
A: The 9750830 features silver-plated copper contacts with stainless steel springs. This combination provides excellent conductivity and corrosion resistance for long-term reliability in battery and DC power applications.
Q: How many mating cycles is the 9750830 rated for?
A: The 9750830 is rated for a minimum of 1,500 mating cycles, making it durable for frequent connect/disconnect operations in service environments.
Q: What flammability rating does the 9750830 housing have?
A: The 9750830 has a UL94 V-0 flammability rating and features a keyed red polycarbonate housing. The keyed design prevents incorrect connections, and the polycarbonate meets strict fire safety standards.
