Product Description

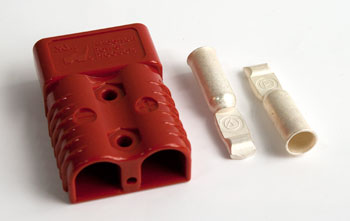

SB175 1/0 RED Battery Connector
Heavy-duty battery charging connector designed for electric pallet jacks and lift trucks. The 1/0 AWG (single-aught gauge) rating supports high-current power distribution in 24V and 36V battery systems. Red color designation indicates positive polarity, ensuring proper circuit orientation and operator safety. Built for reliable connections on Crown, Toyota, Raymond, Yale, Hyster, and other electric lift truck equipment. Direct replacement for applications requiring SB175-series connectors with standard voltage keying.
Specifications
Physical Specifications
| Connector Type | SB175 Anderson Power Products |
| Cable Gauge Rating | 1/0 AWG (Single-Aught) |
| Polarity | Positive (Red) |
| Voltage Rating | 24V / 36V (Keyed) |
| Current Capacity | High-Current Power Distribution |
| Housing Material | Polycarbonate / Nylon Composite |
| Contact Material | Tinned Copper |
| Environmental Rating | Sealed / Weather-Resistant |
| Color Designation | Red (Positive Terminal) |
Compatibility
| Compatible Equipment | Electric Pallet Jacks, Lift Trucks |
Frequently Asked Questions
Q: What is the L0009750830 SB175 1/0 Red connector used for?
A: The L0009750830 is an SB175 series connector designed for electric lift truck charging and power applications. The 1/0 AWG rating indicates it handles single-aught gauge battery cable in high-current power distribution circuits.
Q: How does the SB175 series differ from the SB350 series?
A: The SB175 series typically handles lower current ratings than the SB350. The SB175 1/0 connector uses smaller gauge cable (1/0 AWG) compared to the SB350 which uses 2/0 AWG. Choose SB175 for applications with moderate current draw and SB350 for high-amperage charging systems.
Q: What does the red color designation indicate?
A: The red color indicates positive polarity or terminal identification. Red connectors on electric lift trucks are typically used for positive battery connections in 24V or 36V systems, distinguishing them from gray or black negative polarity connectors.
Q: Is the L0009750830 keyed for voltage safety?
A: SB175 connectors typically include voltage keying to prevent incompatible connections. Confirm the specific voltage rating (24V, 36V) by checking your connector labeling or equipment documentation to ensure safe mating.
Q: What lift truck manufacturers use SB175 connectors?
A: The L0009750830 is compatible with equipment from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, and other electric lift truck manufacturers that use SB175 connectors in their battery systems. Verify cable gauge, voltage rating, and physical fitment match your specific equipment before ordering.
