Product Description

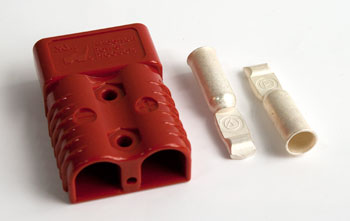

The Anderson Power Products 6329G1 is a SB175 Series 2-way DC supply connector rated at 175A and 600V, featuring silver-plated copper contacts, 1/0 AWG compatibility, polycarbonate housing, and 10,000 cycle connect/disconnect durability. No validated cross-reference or superseded part numbers are available for this specification.
Specifications
Electrical Specifications
| Current Rating | 175A continuous |
| Voltage Rating | 600V AC/DC |
Material & Construction
| Housing Material | Polycarbonate (PC) |
Mechanical Specifications
| Number of Contacts | 2-position, genderless design |
| Assembly Cycles | Rated for 10,000 connect/disconnect cycles |
Part Numbers
| Manufacturer Part Number | 6329G1 |
| Equivalent Part Number | None identified; only Anderson Power catalog listing 6329G1 |
Frequently Asked Questions
Q: What are the electrical specifications of the SB2-6329G1 connector?
A: The SB2-6329G1 is an SB175 Series 2-way DC supply connector rated for 175A continuous current at 600V AC/DC. It features silver-plated copper contacts and accepts 1/0 AWG cable. The connector uses a genderless design with polycarbonate housing.
Q: How durable is the SB2-6329G1 for repeated connect/disconnect cycles?
A: The SB2-6329G1 is rated for 10,000 connect/disconnect assembly cycles, making it suitable for electric lift trucks and equipment requiring frequent battery or power distribution connections.
Q: What materials are used in the SB2-6329G1 connector construction?
A: The connector features silver-plated copper contacts for superior conductivity and corrosion resistance, combined with a durable polycarbonate housing that resists impact and UV degradation.
Q: Is there a cross-reference part number for the SB2-6329G1?
A: No validated cross-reference or superseded part numbers are currently available. The SB2-6329G1 is the primary catalog listing for this Anderson Power Products 6329G1 specification.
