Product Description

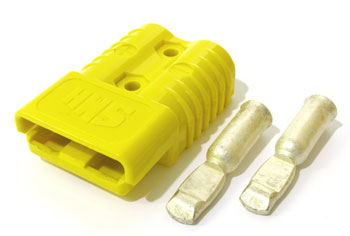

CONNECTOR (SB175 1/0 YELLOW)
Frequently Asked Questions
Q: What is the yellow SB175 1/0 connector used for?
A: The yellow SB175 1/0 connector is a 1/0 gauge battery connector for small electric lift trucks and walkie stackers. Yellow is a color identifier only and does not indicate polarity. Consult your equipment wiring diagram to determine whether this connection is positive or negative on your specific lift truck model.
Q: Can I substitute a yellow connector for an orange or gray SB175 1/0?
A: Yes. All SB175 1/0 connectors, regardless of color (yellow, orange, gray), are functionally equivalent. They use the same 1/0 gauge barrel and fit the same receptacles. You can safely use yellow, orange, or gray interchangeably without any electrical or mechanical issues.
Q: What happens if I install a yellow 1/0 connector on equipment that requires 2/0 gauge?
A: Installing a 1/0 connector on 2/0 equipment will create excessive connection resistance because the smaller barrel will not make solid contact with the larger receptacle. This causes voltage drop, heat generation, and potential connector failure or fire risk. Always verify the gauge rating of your original connector before replacement.
Q: What temperature range is safe for the yellow SB175 1/0 connector?
A: SB175 1/0 connectors are rated for operation from negative 40 degrees Fahrenheit to positive 185 degrees Fahrenheit. In cold storage below 0 degrees, inspect monthly for ice formation inside the connector barrel. In hot environments, ensure dielectric grease is reapplied annually to prevent drying and connection resistance.
Q: How do I properly terminate battery cable to a yellow 1/0 connector?
A: Strip 0.375 inches of insulation from 1/0 gauge battery cable. Insert the stripped cable fully into the connector barrel. Use a medium-duty 1/0 gauge crimping tool to make two firm compressions. Do not rely on solder; crimping only. Apply dielectric grease to all exposed copper after crimping.
Q: What causes premature failure of this connector?
A: Common failure causes include inadequate crimping (loose connection causing heat and corrosion), lack of dielectric grease protection, exposure to battery acid spray, cold storage ice formation, and improper cable gauge. Preventive measures include annual dielectric grease reapplication, monthly visual inspection, and immediate replacement if corrosion or looseness is detected.
