Product Description

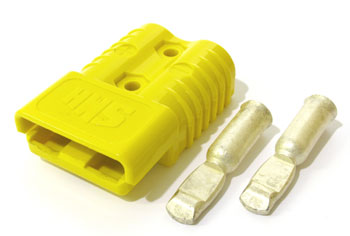

CONNECTOR (SB175 1/0 YELLOW)
Specifications
Physical Specifications
| Connector Series | SB175 |
| Wire Gauge | 1/0 AWG |
| Amp Rating | 175 Amps (Continuous Duty) |
| Voltage Rating | 600V Maximum |
| Mechanical Keying | Yellow |
| Housing Material | Polycarbonate |
| Circuit Function | Battery Circuit (Yellow-keyed) |
Frequently Asked Questions
Q: What is the electrical configuration of the 317-1755-P?
A: The 317-1755-P is an SB175-series connector rated for 175 amps continuous duty at 600V, compatible with 1/0 AWG wire. The yellow mechanical key indicates specific circuit compatibility on electric lift trucks.
Q: What does the yellow keying on the 317-1755-P indicate?
A: The yellow color code is a mechanical keying feature that prevents mating with incompatible SB175 connectors. Yellow designation corresponds to a particular battery circuit function across multiple OEM lift truck platforms.
Q: Can the 317-1755-P be used interchangeably with orange or gray keyed SB175 connectors?
A: No. Although all are 175-amp SB175-series 1/0 AWG connectors, mechanical keying (yellow, orange, gray) enforces proper circuit matching. Mismatched keying prevents connection to wrong battery circuits.
Q: Which lift truck OEMs use the SB175 1/0 yellow connector?
A: SB175-series yellow-keyed connectors are found on electric material handling equipment from Crown, Toyota, Raymond, Yale, Jungheinrich, and other manufacturers. Verify your equipment serial range and OEM specifications for correct connector selection.
Q: What are the standard specifications of the 317-1755-P?
A: The 317-1755-P meets 175-amp continuous duty and 600V maximum voltage requirements for SB175-series circuits. Polycarbonate housing and mechanical color keying provide durability and circuit protection in warehouse applications.
