Product Description

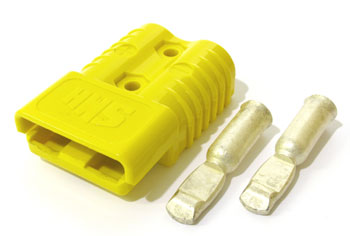

The 916780 is a high-current SB175 battery connector designed for electric lift trucks and material handling equipment. Rated for 600V AC/DC service at up to 175 amperes continuous current, it reliably handles the demanding power circuits found in modern electric pallet jacks, reach trucks, order pickers, and forklifts.
This robust connector connects heavy-gauge cables in battery-to-controller, motor power, and auxiliary power circuits. The yellow color coating provides easy visual identification for proper circuit connection. Built to SB175 connector standards, it withstands repeated connection cycles typical of daily warehouse and dock operations, ensuring dependable performance across equipment from leading manufacturers.
Specifications
Physical Specifications
| Voltage Rating | 600V AC/DC |
| Current Rating | Up to 175A |
| Connector Type | SB175 |
| Connector Color | Yellow |
Compatibility
| Application | Electric Lift Trucks - Battery and Motor Circuits |
Frequently Asked Questions
Q: What voltage and current rating does the 916780 SB175 connector handle?
A: The 916780 is rated for 600V AC or DC service at up to 175 amperes continuous current. These ratings make it suitable for high-amperage battery and motor circuits on electric lift trucks.
Q: Which electric lift trucks use the 916780 connector?
A: The 916780 is compatible with electric lift truck models from Toyota, Crown, Raymond, Yale, Hyster, Jungheinrich, Linde, and other major manufacturers using SB175 connector specifications. Verify your equipments connector size and amperage requirements before ordering.
Q: What applications require the 916780 high current connector?
A: The 916780 is used in battery-to-controller connections, motor power circuits, and high-current auxiliary power feeds on electric lift trucks. It connects heavy-gauge cables carrying sustained currents typical of electric motive power systems.
Q: Is the 916780 rated for outdoor or wet service?
A: The 916780 meets SB175 connector standards for industrial material handling use. For specific environmental sealing, moisture, or temperature ratings, contact us with your equipment specifications and operating environment.
Q: Can the 916780 connector withstand repeated connection cycles?
A: Yes. SB175 connectors are designed for repeated connection and disconnection in service and charging applications. However, corrosion of contacts reduces connection quality over time. Inspect contacts annually and replace the connector if resistance increases.
