Product Description

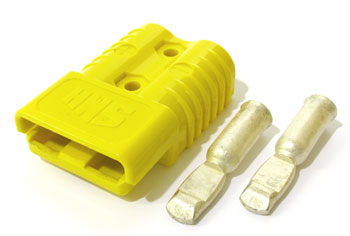

SB2-6328G1 is an Anderson Power Products SB175 yellow power connector rated for 175A, compatible with 1/0 AWG wire. The assembly includes a polycarbonate housing, genderless silver-plated copper contacts, and is suitable for electric lift truck applications with a maximum voltage of 600V. Cross-references include SB2-7252G11 (Black, keyless).
Specifications
Electrical
| Rated Current | 175A (maximum) |
| Maximum Voltage | 600V (AC or DC) |
| Mating Cycles | Rated for 10,000 mating cycles |
Part Numbers
| Manufacturer Part Number | 6328G1 |
| OEM Part Number | SB2-6328G1 |
Frequently Asked Questions
Q: What are the current and voltage ratings for the SB2-6328G1?
A: The SB2-6328G1 is rated for 175 amps maximum continuous current at 600V AC or DC. The yellow polycarbonate housing identifies this SB175 connector for electric lift truck battery service.
Q: What wire gauge is this connector compatible with?
A: The SB2-6328G1 supports 1/0 AWG wire. The assembly includes silver-plated copper contacts and genderless mating for reliable connections in battery systems.
Q: How many mating cycles is the SB2-6328G1 rated for?
A: The SB2-6328G1 is rated for 10,000 mating cycles. This cycle rating indicates the connector is designed for repeated battery connections over its service life in electric lift truck applications.
Q: What are the material specifications for this connector?
A: The SB2-6328G1 features a yellow polycarbonate housing with genderless silver-plated copper contacts. These materials provide durable, corrosion-resistant performance for continuous 175-amp service.
Q: Are there alternative part numbers for the SB2-6328G1?
A: The SB2-6328G1 cross-references to Anderson Power Products 6328G1. A related black keyless variant is available under cross-reference number SB2-7252G11 for applications requiring different mating characteristics.
