Product Description

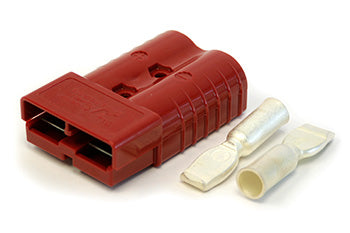

Red SB350 2/0 gauge connector housing for electric lift truck parts, rated to 350A continuous, accepts 2/0 AWG cabling, high-impact polycarbonate or chemical resistant PBT/PC blend material, silver-plated copper contacts, 10,000 mating cycles, Anderson Power equivalent to SB350RED, 913-BK, and 6322G1.
Specifications
Electrical
| Maximum Rated Current | 350A (2/0 AWG) |
| Connector Type | SB350 2-pole |
Material & Construction
| Spring Material | Stainless steel |
Frequently Asked Questions
Q: What are the material options for the 3060672 red connector housing?
A: The 3060672 housing is available in high-impact polycarbonate or a chemical-resistant PBT/PC blend. The blend material offers superior resistance to oils, solvents, and temperature extremes common in industrial lift truck environments.
Q: What is the contact durability rating for the 3060672?
A: The 3060672 is rated for 10,000 mating cycles with silver-plated copper contacts and stainless steel springs. This rating indicates the connector can withstand frequent connection and disconnection in service and maintenance applications.
Q: What equivalent part numbers can be used to identify the 3060672?
A: The 3060672 is equivalent to Anderson Power SB350RED, manufacturer part number 913-BK, and cross-reference 6322G1. Verify the correct equivalent when sourcing replacements for your specific lift truck brand and model.
Q: What is the maximum current rating and cable compatibility for the 3060672?
A: The 3060672 is rated for 350A continuous current and accepts 2/0 AWG cabling exclusively. The silver-plated copper contacts ensure low resistance at this high amperage rating.
