Product Description

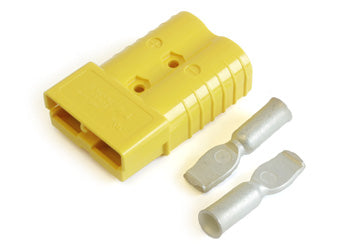

Anderson Power Products SB350 heavy-duty electrical connector rated for 350 amperes continuous operation at 600 volts with 2/0 AWG wire. Two-pole genderless design with silver-plated copper contacts, polycarbonate housing, and mechanical color-coded keying for industrial power distribution applications.
Specifications
Electrical
| Current Rating | 350 amperes UL rated with 2/0 AWG wire |
| Voltage Rating | 600 volts continuous AC or DC operation |
Part Numbers
| Cross-Reference Part Numbers | 907-BK for 2/0 wire contacts, 908-BK for 4/0 wire |
Performance
| Mating Cycle Life | 10,000 cycles no-load mechanical operation |
Frequently Asked Questions
Q: What is the current and voltage rating for the Anderson SB350 connector?
A: The SB350 is rated for 350 amperes continuous operation at 600 volts AC or DC. The cross-reference part 907-BK handles 2/0 AWG wire, while 908-BK accommodates 4/0 AWG wire.
Q: What contact material does the SB350 use?
A: The SB350 features silver-plated copper contacts with a polycarbonate housing. The two-pole genderless design uses mechanical color-coded keying for industrial power distribution.
Q: How many mating cycles is the SB350 rated for?
A: The SB350 is rated for 10,000 mating cycles under no-load mechanical operation, making it suitable for frequent connection and disconnection in industrial environments.
