Product Description

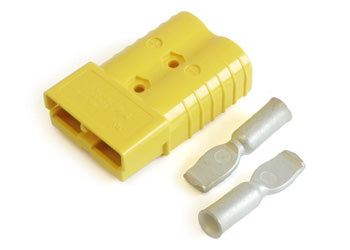

Connector (SB350 2/0 Yellow) for electric lift truck applications. Features mechanically keyed, color-coded yellow housing, rated 450 amps continuous at 2/0 AWG, 500 V AC/DC operational voltage, silver-plated copper contacts, and mating cycles up to 10,000. Compatible with Anderson Power Products SB350 modular connectors.
Specifications
Electrical
| Current Rating | 450 amps continuous (2/0 AWG) |
| Voltage Rating | Up to 500 V AC/DC, steady state |
| Finger Safety | IEC 60529 IP20 mated, IP10 unmated |
Part Numbers
| OEM Part Number | SB350 |
| Contact Set Part Number | SB350-2/0 (Anderson 907-BK for contacts) |
Frequently Asked Questions
Q: What is the continuous current rating for this SB350 connector?
A: This connector is rated for 450 amps continuous at 2/0 AWG.
Q: What voltage range does this SB350 2/0 connector handle?
A: The connector is rated for up to 500 V AC/DC steady state operational voltage.
Q: What contact material is used in this connector?
A: This connector uses silver-plated copper contacts for optimal conductivity and corrosion resistance.
Q: How many mating cycles is this connector rated for?
A: This connector supports up to 10,000 mating cycles.
Q: What is the safety rating when this connector is mated and unmated?
A: The connector meets IEC 60529 IP20 when mated and IP10 when unmated for finger safety protection.
Q: Which equipment does this SB350 2/0 yellow connector fit?
A: This connector is designed for electric lift truck applications and is compatible with Anderson Power Products SB350 modular connector systems. The mechanically keyed yellow housing provides color-coded identification for standardized connections.
