Product Description

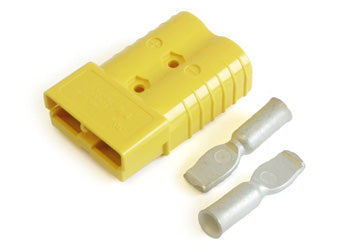

The SB6323G1 is a yellow SB350 series battery connector designed for electric lift truck applications. It is compatible with 2/0 AWG cable, supports 350A continuous current at up to 600V, and features a robust polycarbonate housing with genderless mating and keyed color coding for safe, error-proof installation. Cross-references include AM6323G1 and SB350 series equivalents.
Specifications
Electrical
| Rated Voltage | 600VDC/AC |
Part Numbers
| Manufacturer Part Number | SB6323G1 |
| Cross-Reference Part Numbers | AM6323G1 |
| OEM Reference | SB350 series |
Frequently Asked Questions
Q: What are the voltage and current ratings for the SB6323G1 connector?
A: The SB6323G1 supports 350A continuous current at up to 600VDC/AC. This rating applies when properly mated with compatible contact sets and cable.
Q: What cable gauge is compatible with the SB6323G1?
A: The SB6323G1 is designed for 2/0 AWG cable. Do not attempt to use smaller or larger cable gauges, as this will affect contact pressure and current flow.
Q: What is the housing material, and why is polycarbonate used?
A: The SB6323G1 uses a robust polycarbonate housing. Polycarbonate offers excellent electrical insulation, impact resistance, and dimensional stability in electric lift truck battery applications.
Q: What does genderless mating mean for this connector?
A: Genderless mating means there is no designated male or female connector half. Both sides can mate to each other, simplifying connector design and reducing inventory complexity.
Q: What is the keyed color coding on the SB6323G1?
A: The keyed yellow color coding is used to prevent polarity reversal and ensure error-proof installation. Only matching keyed housings and contact sets can mate properly.
Q: What equipment types use the SB6323G1, and what cross-reference part numbers exist?
A: The SB6323G1 is used in electric lift trucks and is compatible with Crown, Toyota, Raymond, and other OEM equipment. Cross-reference part number AM6323G1 is equivalent. This connector is part of the SB350 series standard.
