Product Description

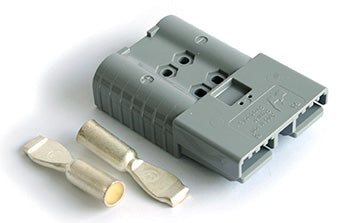

The 2/0 AWG Battery Connector is a heavy-duty, genderless power connector designed for electric lift trucks and material handling equipment. Rated for 350 amperes continuous duty, this connector features silver-plated copper contacts with low micro-ohm resistance for reliable power transfer. The rugged polycarbonate or PBT/PC housing provides IP64 environmental protection suitable for warehouse and industrial applications. Built for frequent use with 10,000+ mechanical connect/disconnect cycles, it ensures dependable performance in demanding electric forklift and pallet jack operations.
Specifications
Physical Specifications
| Amperage Rating | 350 amperes continuous duty |
| Wire Size (Primary) | 2/0 AWG |
| Wire Size Range | 1/0 AWG to 350 kcmil |
| Maximum Capacity (Larger Conductors) | 500 amperes |
| Contact Material | Silver-plated copper |
| Contact Resistance | 500 micro-ohm |
| Housing Material | Red polycarbonate or PBT/PC composite |
| Environmental Rating | IP64 |
| Connector Design | Genderless polarized |
| Mechanical Cycle Rating | 10,000 connect/disconnect cycles |
| Contact Interface | Flat wiping contact |
Frequently Asked Questions
Q: What is the Anderson SB350 2/0 connector rated for?
A: The SB350 series connector is rated for 350 amperes continuous duty with 2/0 AWG conductor compatibility. It features silver-plated copper contacts with 500 micro-ohm contact resistance and genderless polarized housing design with IP64 environmental protection.
Q: What material are the contacts and what is the housing made from?
A: Contacts are silver-plated copper for maximum conductivity and corrosion resistance. The housing is available in red polycarbonate or chemical-resistant PBT/PC composite material, both rated for industrial environments.
Q: Is this connector compatible with different wire gauges?
A: The SB350 accommodates wire sizes from 1/0 AWG to 350 kcmil, with a maximum capacity of 500 amperes for larger conductor applications. Verify your specific wire gauge matches the connector rating before ordering.
Q: How many mechanical cycles is this connector rated for?
A: The SB350 connector features a flat wiping contact interface rated for 10,000 mechanical connect/disconnect cycles, making it suitable for frequent use in material handling equipment.
