Product Description

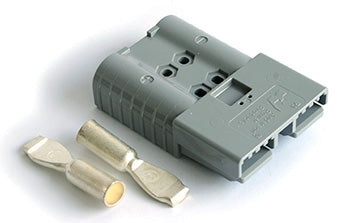

CONNECTOR (SBX350 2/0 GRAY)
Specifications
Physical Specifications
| Connector Type | SBX350 Series |
| Cable Size Rating | 2/0 Gauge |
| Insulation Color | Gray |
| Terminal Material | Tinned Copper |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Amperage Capacity | 150-200 Amperes (2/0 gauge typical) |
| Primary Applications | Battery disconnect circuits, motor power connections, charger interfaces |
| Corrosion Resistance | Tinned copper and PVC resist moisture, battery acid, vibration |
Compatibility
| Compatible Voltage Systems | 36V, 48V, 80V |
Frequently Asked Questions
Q: What is the 59210 connector used for?
A: The 59210 is an SBX350 series connector rated for 2/0 gauge electrical cable. This connector is designed for high-amperage power distribution in electric lift trucks, battery charging systems, and electric motor circuits. The gray insulation indicates standard polarity designation.
Q: What amperage rating does this connector handle?
A: The 2/0 gauge rating indicates this connector handles high current applications typical in electric lift truck systems. 2/0 cable typically supports 150 to 200 amperes depending on circuit configuration and insulation type. Verify the exact amperage rating against your electrical system requirements.
Q: What are the material specifications for the 59210?
A: SBX350 connectors use tinned copper terminals for corrosion resistance and secure mechanical locking mechanisms. Gray polyvinyl chloride (PVC) insulation provides electrical safety and environmental protection. These materials resist moisture, battery acid, and operational vibration in material handling equipment.
Q: What electric lift truck systems use the 59210 connector?
A: The 59210 is compatible with electric forklifts from Crown, Toyota, Raymond, Jungheinrich, Linde, and BT. Common applications include main battery disconnect circuits, motor power connections, and high-current charger interfaces. Verify voltage compatibility with your equipment, typically 36V, 48V, or 80V systems.
Q: How do I verify proper connection and compatibility?
A: Confirm the 59210 fits your 2/0 gauge power cables and matches the existing connector interface on your equipment. Inspect the terminal for corrosion or damage before installation. The gray insulation should match the polarity coding in your electrical diagram.
Q: What failure symptoms indicate connector degradation?
A: Signs include intermittent power loss, overheating at the connection point, visible corrosion on terminals, or pitting on contact surfaces. Battery acid splash and moisture cause corrosion inside the connector. Poor connections increase electrical resistance and heat generation. Replace corroded connectors to restore full power delivery.
