Product Description

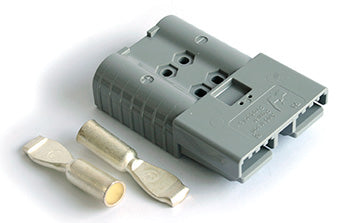

The Anderson Power Products SBX350 connector is a heavy-duty electrical connector designed for electric lift truck battery and drive power systems. Rated for 350 Amps continuous at 600V AC/DC, it features a mechanically keyed polycarbonate housing with silver-plated contacts for superior conductivity and corrosion resistance in industrial environments. The connector supports 2 primary power poles and up to 8 auxiliary contacts for flexible power and control circuit integration.
Specifications
Electrical Specifications
| Primary Power Current Rating | 350 Amps continuous per pole |
| Auxiliary Power Current Rating | Up to 20 Amps per pole |
| Voltage Rating | 600V AC/DC per UL 1977 |
Physical & Mechanical
| Wire Gauge | 2/0 AWG |
| Housing Material | Mechanically keyed polycarbonate |
| Contact Material | Silver-plated for corrosion resistance |
| Color | Gray |
| Number of Power Poles | 2 |
| Number of Auxiliary Contacts | Up to 8 |
Part Numbers & Cross-References
| Manufacturer Part Number | SBX350 |
| Equivalent Part Numbers | SBX350-6340G1 |
| Supersedes | Anderson Power Products 6350 |
Frequently Asked Questions
Q: What is the current rating and voltage specification of the SBX350 connector (SKU 800118538)?
A: The Anderson Power Products SBX350 connector (SKU 800118538) is rated for 350 Amps continuous per pole at 600V AC/DC. The connector uses 2/0 AWG cable and is designed for heavy-duty industrial battery and drive power connections on electric lift trucks.
Q: What are the cross-reference part numbers for SKU 800118538?
A: SKU 800118538 is equivalent to Anderson Power Products SBX350-6340G1 and supersedes Anderson part number 6350. If you need a replacement connector, these cross-references can help identify compatible alternatives, but verify the SBX350 Series designation before ordering.
Q: What are the physical characteristics of the SBX350 connector?
A: The SBX350 features a mechanically keyed polycarbonate housing with silver-plated contacts for corrosion resistance. It accommodates up to 8 auxiliary contacts in addition to the 2 primary power poles, making it suitable for complex power and control circuits in electric lift trucks.
Q: Which electric lift truck types use the SBX350 connector (800118538)?
A: The SBX350 connector is used in Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, and BT electric lift trucks. Confirm your lift truck model requires SBX350 Series connectors and matches the 2/0 AWG specification before ordering.
Q: Why are silver-plated contacts important on the SBX350 connector?
A: Silver-plated contacts reduce electrical resistance and improve conductivity in harsh industrial environments. This is critical for 350 Amp applications where contact corrosion or oxidation can cause voltage drop, heat buildup, and premature connector failure.
