Albright Industrial Contact Kit for Lift Trucks
DC182L-SKD
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

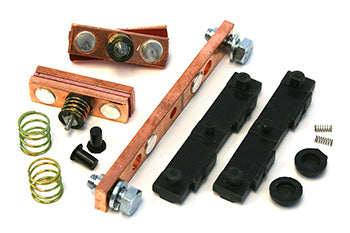

Industrial contact kit for Albright DC182 Series reversing contactors; compatible with electric lift truck parts, 200A continuous/400A peak, double breaking silver alloy tips, cross-reference to DC182L, DC182B, SW182, suitable for 6–80VDC circuits.
Specifications
Part Numbers & Compatibility
| Make | Albright |
| Manufacturer Part Number | DC182L-SKD |
| Reference | DC182L, DC182B, SW182 |
| Cross-Reference Part Numbers | Replaces DC182L, DC182B; supersedes SW182; equivalent to Albright DC182 Series contacts |
| Cross Reference Part Numbers | Replaces DC182L, DC182B; supersedes SW182; equivalent to Albright DC182 Series contacts |
Electrical Specifications
| Rated Voltage (Contact Circuit) | 6 to 80VDC |
| Voltage Coil Options (Reference) | 12VDC, 24VDC, 36VDC, 48VDC, 72VDC (contact kit matches DC182 Series application) |
| Current Rating | 200A continuous / 400A peak |
Additional Specifications
| SKU | DC182L-SKD |
| Electric Life | 20,000 operations (contact kit material duty cycle) |
| Description | Industrial contact kit for Albright DC182 Series reversing contactors; compatible with electric lift truck parts, 200A continuous/400A peak, double breaking silver alloy tips, cross-reference to DC182L, DC182B, SW182, suitable for 6–80VDC circuits. |
| Contact Type | Double breaking silver alloy tips |
Frequently Asked Questions
Q: What is the DC182L-SKD contact kit designed to do?
A: The DC182L-SKD is an industrial contact kit for Albright DC182 Series reversing contactors. It provides replacement double breaking silver alloy tips suitable for electric lift truck parts.
Q: What voltage range does the DC182L-SKD contact kit support?
A: The DC182L-SKD is rated for 6 to 80VDC circuits. This range covers standard 12VDC and 24VDC coil options commonly found in electric lift trucks. Verify your equipment circuit voltage before ordering.
Q: Which makes and models is the DC182L-SKD compatible with?
A: The DC182L-SKD replaces the DC182L and DC182B. It also supersedes the SW182. Cross-check your current contactor model against these part numbers to confirm compatibility.
Q: What material are the DC182L-SKD contacts made from?
A: The DC182L-SKD features double breaking silver alloy contact tips. Silver alloy provides superior electrical conductivity and durability compared to copper. These contacts resist oxidation and maintain low resistance during heavy cycling.
Q: How often should DC182L-SKD contacts be inspected or replaced?
A: Contact wear depends on switching frequency and load current. Inspect the DC182L-SKD contacts every 6 to 12 months if the equipment cycles daily. Replace contacts if surfaces show pitting, erosion, or burn marks that exceed 10% of original contact face area.
Q: What is the continuous current rating for the DC182L-SKD?
A: The DC182L-SKD contact kit is rated at 200A continuous duty. Peak fault current breaking capacity is 400A. Do not exceed the continuous rating in sustained applications.
Q: What should I consider when replacing the DC182L-SKD?
A: When replacing the DC182L-SKD, ensure compatibility with your equipment by cross-referencing part numbers. Verify the circuit voltage and inspect for signs of wear before installation.
