Product Description

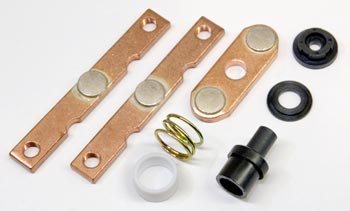

Contact replacement kit designed for TE Connectivity Kilovac EV100 Series DC contactors rated 100 amperes continuous at 600 VDC. Hermetically sealed contact assembly supports SPST-NO switching configuration with 0.05 volt maximum drop at rated current. Compatible with industrial battery isolation, motor control circuits, and solar inverter applications requiring 1,000,000 mechanical cycle life expectancy. Operates across -40°C to +85°C temperature range with 2200 Vrms dielectric isolation betwee
Specifications
Electrical
| Maximum Voltage Rating | 750 VDC switching, 600 VDC continuous operation |
| Continuous Current Rating | 100 amperes at rated voltage |
| Maximum Contact Voltage Drop | 0.05 volts at rated current |
| Maximum Short Circuit Current | 1250 amperes through closed contacts |
Part Numbers
| Cross-Reference Part Numbers | KIT-3024, KIT-3006, KIT-3026 |
| Compatible With Model | Kilovac EV100 Series DC Contactors |
Performance
| Resistive Load at 400 VDC Positive | 50 amperes make/break for 50,000 cycles; 100 amperes make/break for 6,000 cycles |
| Resistive Load at 600 VDC Positive | 50 amperes make/break for 25,000 cycles; 100 amperes make/break for 5,000 cycles |
| Heavy Current Breaking at 400 VDC | 1000 amperes break only for 5 cycles |
| Heavy Current Breaking at 600 VDC | 600 amperes break only for 5 cycles |
Frequently Asked Questions
Q: What equipment does the 1069115 contact replacement kit fit?
A: The 1069115 is a contact replacement kit designed specifically for TE Connectivity Kilovac EV100 Series DC contactors. This kit is compatible with industrial battery isolation, motor control circuits, and solar inverter applications requiring 100 amperes continuous switching at 600 VDC.
Q: What are the electrical specifications of the 1069115 contact kit?
A: The 1069115 kit is rated for 100 amperes continuous at 600 VDC with a maximum voltage switching rating of 750 VDC. Contact voltage drop is maintained at 0.05 volts maximum at rated current. The hermetically sealed contact assembly supports SPST-NO (Single Pole, Single Throw, Normally Open) switching configuration.
Q: What is the mechanical cycle life expectancy of the 1069115 contact kit?
A: The 1069115 contact assembly is rated for 1,000,000 mechanical cycle life expectancy. This rating applies to switching cycles under normal operating conditions. Contact degradation and voltage drop increase over the service life as the contact surfaces wear.
Q: What temperature range does the 1069115 contact kit operate in?
A: The 1069115 operates across a temperature range of minus 40 degrees Celsius to plus 85 degrees Celsius. Verify that your ambient and enclosure temperatures remain within this range for proper contact performance and dielectric isolation.
Q: What are the cross-reference part numbers for the 1069115 contact kit?
A: The 1069115 contact replacement kit cross-references to KIT-3024, KIT-3006, and KIT-3026. Use these numbers when sourcing replacement kits from technical documentation or verifying compatibility with your Kilovac EV100 Series contactor application.
Q: How does the 1069115 kit maintain dielectric isolation?
A: The 1069115 contact assembly includes 2200 Vrms dielectric isolation between switching poles, ensuring safe isolation of control circuits and preventing cross-contamination between isolated circuit branches. Verify insulation integrity during maintenance checks.
