Product Description

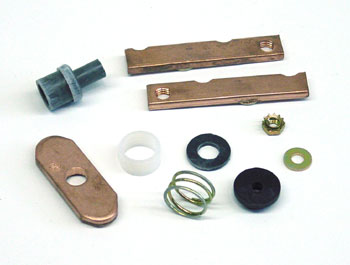

Replacement contact kit for EV-100 series DC contactors, compatible with KILOVAC EV100 600VDC 100A class devices. Cross-references include KIT-3006 and KIT-3024.
Specifications
Electrical
| Continuous Current Rating | 100A at up to 600 VDC (contactor spec) |
| Coil Voltage Range | 9-36 VDC (contactor spec) |
| Contact Voltage Drop | 0.05V maximum at rated current (contactor spec) |
| Contactor Operate Time | 30 ms maximum (contactor spec) |
Part Numbers
| Cross-Reference Part Numbers | KIT-3006, KIT-3024 |
| Equivalent Part Number | KIT-3006 (Contact Kit for EV-100) |
Performance
| Switching Life at 50A/400VDC | 50,000 cycles (contactor spec) |
| Switching Life at 50A/600VDC | 25,000 cycles (contactor spec) |
Frequently Asked Questions
Q: What is the 996113 contact kit used for?
A: The 996113 is a replacement contact kit designed for EV-100 series DC contactors. It is compatible with KILOVAC EV100 devices rated for 600 VDC and 100A continuous current, commonly found in electric lift trucks and material handling equipment.
Q: What are the cross-reference part numbers for 996113?
A: The 996113 cross-references to KIT-3006 and KIT-3024. These are equivalent contact kits for the KILOVAC EV-100 contactor series. Verify the cross-reference matches your specific contactor configuration before ordering.
Q: What are the electrical specifications for the 996113?
A: The 996113 is rated for 100A continuous current at up to 600 VDC. The contact kit maintains a maximum voltage drop of 0.05V at rated current. Coil voltage range is 9-36 VDC, compatible with standard electric lift truck power systems.
Q: Is the 996113 contact kit compatible with EV-100 contactors from all manufacturers?
A: The 996113 is specifically designed for KILOVAC EV-100 600 VDC 100A class contactors. Verify the manufacturer and model of your contactor before ordering to ensure compatibility with your equipment.
Q: What does the contact kit include and when should it be replaced?
A: The 996113 contact kit replaces the main contacts in the EV-100 contactor assembly. Replace the contact kit if the contactor exhibits reduced switching performance, increased voltage drop, or arcing issues that indicate contact wear or erosion.
