Contact Set SB350 2/0 for Anderson and Caterpillar and Mitsubishi and Nissan and Raymond
2I5320
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

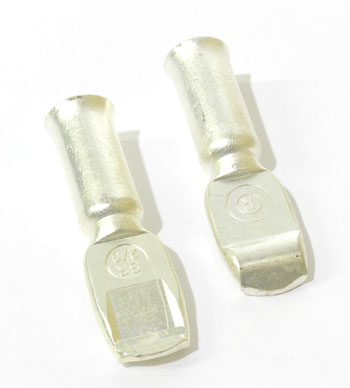

Contact Set (SB350 2/0) for Electric Lift Truck Parts, manufacturer part number 2I5320. Compatible with Mitsubishi, Nissan, and Raymond electric lift trucks. Rated for 350A maximum continuous current and up to 600VDC, designed for 2/0 AWG cable termination, tin-plated high-conductivity copper alloy. Includes cross-reference part numbers and full mechanical/electrical dimensions and specifications.
Specifications
Material & Construction
| Material | Tin-plated high-conductivity copper alloy |
Part Numbers & Compatibility
| Make | Anderson, Cat Caterpillar, Mitsubishi, Nissan, Raymond |
| Manufacturer Part Number | 2I5320 |
| Cross-Reference Part Numbers | Nissan 6030096, Nissan 907H, Nissan PM4985203, Raymond 922336 |
| Part Number | Mitsubishi 2I5320 |
| Interchangeability | Interchangeable with Anderson SB350 series contacts |
Electrical Specifications
| Current Rating | 350A maximum continuous current |
| Voltage Rating | Rated for systems up to 600VDC |
Additional Specifications
| Service Life | Rated for 500 mating cycles at full load |
| Cable Termination | Designed for 2/0 AWG cable termination |
Frequently Asked Questions
Q: What makes of electric lift trucks is the 2I5320 compatible with?
A: The 2I5320 is compatible with Anderson, Caterpillar, Mitsubishi, Nissan, and Raymond electric lift trucks using the sb350 2/0 connector standard.
Q: What material is the 2I5320 contact set made from?
A: The 2I5320 uses tin-plated high-conductivity copper alloy terminals, which provide corrosion resistance and are suitable for 600vdc battery connector applications.
Q: How long does the 2I5320 contact set last?
A: The 2I5320 is rated for 500 mating cycles, which refers to the number of times the connector can be mated and unmated before contact wear affects electrical performance.
Q: What should I do if I need a contact set for larger cable gauge?
A: If your equipment uses 3/0 awg or larger cable, you need part 2i5321 (3/0) instead. Using the wrong gauge contact set will not provide proper electrical connection and can cause equipment failure.
Q: Are there any cross-references for the 2I5320?
A: Yes, the 2I5320 has cross-references including Nissan 6030096, Nissan 907h, Nissan pm4985203, and Raymond 922336.
