Product Description

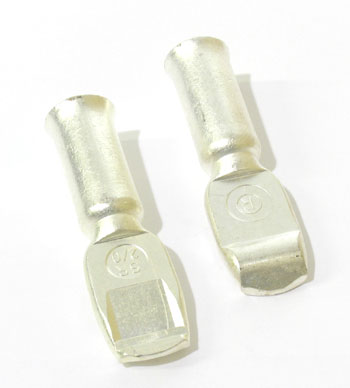

SB350 2/0 contact set (334921) designed for electric lift truck battery and power distribution systems. These silver-plated copper alloy contacts deliver reliable high-current connections rated for 350A continuous with 2/0 AWG cable in 600V DC systems. Spring-retained design supports 10,000 mating cycles with minimal maintenance. Direct replacement for Anderson Power Products 907, widely used across major lift truck manufacturers including Crown, Toyota, Hyster, Yale, and Jungheinrich for battery connector applications.
Specifications
Electrical
| Current Rating | 350A continuous with 2/0 wire; 450A continuous with 4/0 wire |
| Voltage Rating | Rated up to 600 VDC (operational limit: 500V AC/DC) |
Material & Construction
| Contact Material | Silver-plated copper alloy |
| Spring Material | Stainless steel, spring-retained |
| Cable Compatibility | 2/0 AWG (4/0 AWG available with higher current rating) |
Part Numbers & Compatibility
| Manufacturer Part Number | SB350 2/0 Contact Set |
| Anderson Power Products Part | 907 |
| Cross-Reference | Direct replacement for Anderson Power Products 907 SB350 connector contacts |
Performance
| Cycle Life | 10,000 mating cycles at rated current under no-load conditions |
| Connector Standard | Anderson SB350 battery connector |
| Applications | Electric lift truck battery systems, power distribution, 600V DC systems |
Frequently Asked Questions
Q: What is the 334921 contact set and what equipment does it fit?
A: The 334921 is a SB350 2/0 contact set engineered for Anderson Power Products SB350 connectors used in electric lift truck battery and power distribution systems. It is compatible with 2/0 AWG cable installations in Crown, Toyota, Hyster, Yale, and other OEM lift truck models utilizing 600V DC power systems.
Q: What is the current and voltage rating for the 334921 contact set?
A: The 334921 is rated for 350A continuous current with 2/0 wire (450A continuous with 4/0 wire) and up to 600V DC operation. Operational limit is 500V AC/DC. Do not exceed these ratings in service applications.
Q: What material are the 334921 contacts made from?
A: The 334921 contacts are silver-plated copper alloy with spring retention. Silver plating provides superior conductivity and corrosion resistance critical for reliable power delivery in electric lift truck battery systems.
Q: How many mating cycles is the 334921 contact set rated for?
A: The 334921 contact set is spring-retained and rated for 10,000 mating cycles. This specification assumes proper alignment and contact pressure during each connection/disconnection operation.
Q: Is the 334921 equivalent to Anderson Power Products 907 contacts?
A: Yes, the 334921 SB350 2/0 contact set is cross-referenced to Anderson Power Products part number 907. Both are designed for SB350 connectors with 2/0 AWG cable applications in 350A continuous current systems. Verify connector housing compatibility before ordering.
Q: What maintenance does the 334921 contact set require?
A: Periodically inspect contacts for corrosion, pitting, or discoloration during battery and electrical system maintenance. Clean connector mating surfaces with a dry cloth if visible contamination is present. Replace contacts if damage is observed or if connection resistance increases, which can cause voltage drop during equipment operation.
