Product Description

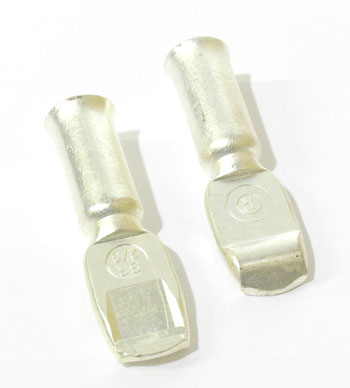

Contact Set P844-0017 is a direct replacement for SB350 2/0 connectors, rated for 350 Amps and 600 VDC, constructed from high-conductivity copper alloy and silver-plated for optimal performance in electric lift truck applications. Terminal is suitable for 2/0 AWG and compatible with standard SB350 housings.
Specifications
Material & Construction
| Insulation Compatibility | Compatible with SB350 molded housing |
Mechanical Specifications
| Connector Series | SB350 |
| Contact Set Application | Auxiliary power and main power circuits |
Part Numbers & Compatibility
| Manufacturer Part Number | P844-0017 |
| Description | Contact set for SB350 2/0 connector |
Frequently Asked Questions
Q: What wire gauge does the P844-0017 contact set accept?
A: The P844-0017 is a 2/0 AWG contact set for SB350 connectors. This contact is suitable for 2/0 AWG copper cable and is rated for 350A continuous current at 600VDC in electric lift truck auxiliary and main power circuits.
Q: What material and plating are used in the P844-0017 contact set?
A: P844-0017 is constructed from high-conductivity copper alloy with silver plating. Silver plating reduces contact resistance, minimizes voltage drop, and improves long-term reliability in high-current battery power applications.
Q: Which SB350 housings are compatible with P844-0017 contacts?
A: The P844-0017 2/0 contact set works with all standard SB350 molded housings including P844-0014, P844-0014BK, and P844-0015. Verify housing and contact mechanical mount specifications match before assembly.
Q: What is the continuous current and voltage rating for P844-0017?
A: P844-0017 is rated for 350A continuous current and 600VDC maximum voltage. This rating applies when properly crimped to 2/0 AWG cable and mated with SB350 housing contacts.
Q: How does the P844-0017 differ from larger 3/0 contact sets?
A: P844-0017 is designed for 2/0 AWG cable while larger contact sets like P844-0018 accommodate 3/0 AWG cable. Both are rated for 350A and 600VDC. Choose based on your cable gauge and circuit requirements.
