Product Description

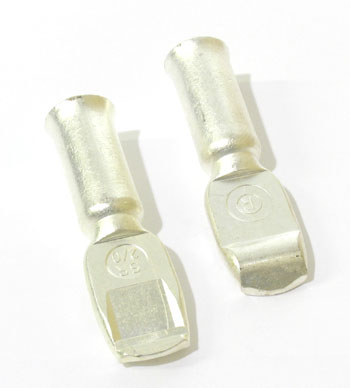

The SB-907 Contact Set (SB350 2/0) is an industrial-duty crimp contact designed for electric lift truck power connectors, manufactured by Liftsplus.com. This contact is engineered for SB350 series housings, accepts 2/0 AWG cable, supports up to 350A at 600VAC/DC, and is constructed from tin-plated copper for high conductivity and corrosion resistance. Direct cross-reference to Anderson Power Products 907-BK.
Specifications
Electrical
| Voltage Rating | 600VAC/DC maximum |
Material & Construction
| Finish/Coating | Tin plated to ASTM B545 |
Part Numbers
| Cross-Reference Part Numbers | Equivalent to Anderson Power SB350 Contact 2/0 AWG, Anderson part number 907-BK |
| Equivalent Part Number | Anderson Power Products: 907-BK |
Frequently Asked Questions
Q: What equipment does the SB-907 contact work with?
A: The SB-907 is a crimp contact designed for SB350 series battery connector housings used on electric lift trucks from Crown, Toyota, Raymond, Hyster, and other material handling equipment manufacturers. It is rated for 350-amp continuous duty systems.
Q: What are the electrical ratings for the SB-907?
A: The SB-907 is rated for 350 amperes continuous duty and supports up to 600VAC or 600VDC. It is designed for 2/0 AWG cable connections in high-current battery systems.
Q: What cable size does this contact accept?
A: The SB-907 is engineered for 2/0 AWG cable only. Do not attempt to use it with smaller or larger gauge conductors, as this will result in poor connection integrity and potential arcing.
Q: What material is the SB-907 made from?
A: The SB-907 is constructed from tin-plated copper. The tin plating conforms to ASTM B545 and provides excellent corrosion resistance and high electrical conductivity in industrial environments and wet storage areas.
Q: What is the cross-reference for the SB-907?
A: The SB-907 is equivalent to the Anderson Power Products part number 907-BK. If you need Anderson-branded contacts, 907-BK will function as a direct replacement for SB350 series housings.
