Product Description

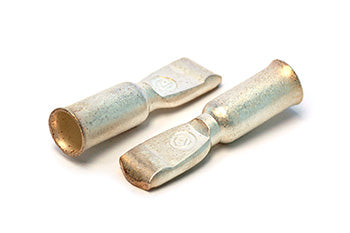

Anderson Power Products SB350 3/0 AWG contact set, OEM part number 916, suitable for high-current applications up to 450A at 600V AC/DC. Features silver-plated copper construction, 0.58 inch contact diameter, and 10,000-cycle rated service life. Compatible with 3/0 AWG wiring for lift truck and industrial connector use.
Specifications
Electrical
| Current Rating (Max) | 450A (with 4/0 AWG wire) |
| Voltage Rating | 600V AC/DC continuous duty |
Material & Construction
| Spring Material | Stainless steel |
Part Numbers
| OEM Part Number | 916 |
| Manufacturer Part Number | 916 |
| Alternate Description | SB350 3/0 Wire Contact Set |
Performance Specifications
| Rated Connector Life | 10,000 cycle durability |
Frequently Asked Questions
Q: What are the current and voltage ratings for the 253981 contact set?
A: The 253981 is rated for a maximum continuous current of 450A when used with 4/0 AWG wire. Voltage rating is 600V AC/DC continuous duty. This makes it suitable for high-current applications in lift truck and industrial connector systems.
Q: What is the contact material and construction of SKU 253981?
A: The 253981 features silver-plated copper construction with a stainless steel spring mechanism. The contact diameter is 0.58 inches. This design provides superior conductivity and corrosion resistance for demanding electrical applications.
Q: What wire gauge is the 253981 contact set compatible with?
A: The 253981 is engineered for 3/0 AWG wiring. It is compatible with lift truck connectors and other industrial applications requiring large-gauge wire connections.
Q: What is the rated service life of the 253981 contact set?
A: The 253981 has a rated connector life of 10,000 cycles. This durability rating is typical for industrial connector duty cycles in material handling equipment.
Q: What is the OEM equivalent for the 253981?
A: The 253981 is equivalent to Anderson Power Products OEM part number 916 and manufacturer part number 916. The alternate description is SB350 3/0 Wire Contact Set.
