Product Description

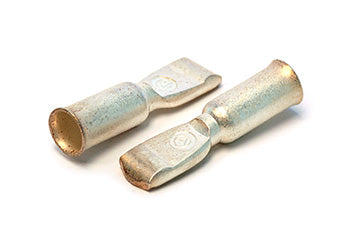

Contact Set (SB350 3/0) P844-0018 by Liftsplus.com is an electric lift truck part engineered for high-current power transmission using SB350 3/0 connectors. Features include silver-plated copper construction, 350A continuous current rating, and compatibility with up to 600VDC applications in electric lift truck systems.
Specifications
Application
| Suitable Equipment | Electric lift trucks utilizing SB350 connector systems |
Electrical
| Connector Type | Power interface contact set for SB350 connector |
Part Numbers
| Manufacturer Part Number | P844-0018 |
Frequently Asked Questions
Q: What wire gauge does the P844-0018 contact set accommodate?
A: The P844-0018 is a 3/0 AWG contact set for SB350 connectors. This contact set is engineered for high-current applications and accepts 3/0 AWG copper cable with 350A continuous current and 600VDC rating.
Q: What material composition is used in the P844-0018 contact set?
A: P844-0018 is constructed from silver-plated copper. Silver plating provides low contact resistance, reduces voltage drop across the connection, and enhances durability in high-current electric lift truck battery applications.
Q: Which SB350 housings work with the P844-0018 3/0 contact set?
A: The P844-0018 contact set is compatible with all standard SB350 polycarbonate housings including P844-0014, P844-0014BK, and P844-0015. Verify mechanical mount and contact retention specifications match your assembly.
Q: What are the electrical ratings for the P844-0018?
A: P844-0018 is rated for 350A continuous current and up to 600VDC. This rating applies to main power circuits and auxiliary power circuits in electric lift truck systems when properly crimped to 3/0 AWG cable.
Q: When should you use P844-0018 3/0 contacts instead of 2/0 contacts?
A: Use P844-0018 3/0 contacts when your cable assembly specifies 3/0 AWG wire. Larger gauge reduces conductor resistance and heat generation in high-amperage circuits. Verify cable gauge and connector specification match before ordering.
