Product Description

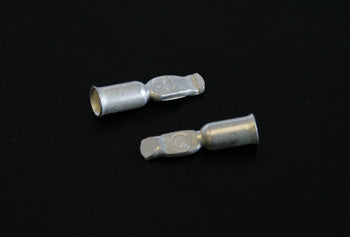

SB50A Contact Set (#6 AWG) for electric lift truck applications. Anderson Power Products OEM contact set supports 50 amp rated DC power connections up to 600V. Includes silver-plated copper contacts, polycarbonate housing, and stainless steel spring retention for secure mating. Compatible with SB50 connector family for battery and power distribution use. Direct replacement for OEM and equivalent part numbers.
Specifications
Electrical
| Current Rating (UL) | 50 amps continuous (contacts); connector family rated 120 amps maximum |
| Voltage Rating (UL) | 600V AC/DC, continuous service |
| Materials - Housing | Polycarbonate (PC) |
Material & Construction
| Spring Material | Stainless steel |
| Unitized Construction | One-piece, industrial-grade plastic housing |
Part Numbers
| Manufacturer Part Number | 903G1 |
| Cross-Reference Part Numbers | Supersedes Anderson 5900 (Individual Contact, #6 AWG) |
| Compatible Connector Series | SB50 Series |
Frequently Asked Questions
Q: What wire gauge does the 2I5340 contact set support?
A: The 2I5340 is an SB50A contact set rated for number 6 AWG wire. It supports 50 amp rated DC power connections up to 600 volts. The silver-plated copper contacts ensure reliable conductivity for battery and power distribution applications on electric lift trucks.
Q: What equipment brands use the SB50 connector family?
A: The 2I5340 contact set is compatible with SB50 series connectors found across multiple OEM electric lift truck manufacturers, including Crown, Toyota, Raymond, and other brands using Anderson Power Products connectors. The SB50 connector family is a standard for battery and power distribution systems.
Q: What are the cross-reference part numbers for this contact set?
A: The OEM part number for the 2I5340 is 903G1. Cross-reference numbers include 5900 (individual contact, number 6 AWG) and 1307 (individual contact, number 6 AWG, low detent). These numbers can help verify compatibility when ordering replacement contact sets.
Q: What materials are used in the 2I5340 contact set?
A: The contact set features silver-plated copper contacts for optimal conductivity, polycarbonate housing for durability, and stainless steel spring retention to ensure secure mating. These materials provide reliable performance in high-amperage DC applications.
Q: Can the 2I5340 be used as a direct replacement for Anderson SB50 connectors?
A: Yes. The 2I5340 is a direct replacement for OEM Anderson SB50 contact sets rated for number 6 AWG wire. It is equivalent to original equipment contact sets and maintains the same 50 amp rating and 600 volt specification.
