Product Description

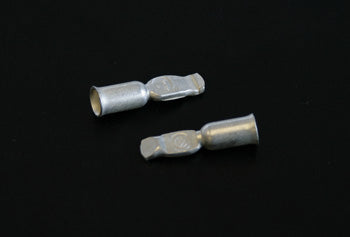

SB50A #6 Contact Set, compatible with Anderson SB 50 two-pole DC connectors, includes #6 AWG silver-plated copper contacts. Rated for 600V, 120A continuous UL, 50A CSA. Designed for electric lift truck battery and power applications. Cross-reference: Anderson 1307, 5900, SED SGD5915-T.
Specifications
Mechanical Specifications
| Maximum Rated Current (Housing) | Rated for 120A UL, 50A CSA continuous (with proper contact used) |
| Contact Mating Force | Low force; see Anderson contact 1307-BK for specification |
| Number of Poles | 2-pole (DC power connectors) |
| Mating Cycles | Rated for up to 10,000 cycles for contacts/connector set |
Part Numbers
| Cross-Reference Part Numbers | SB50-06; Anderson Power Products part numbers: 1307-BK, 1307, 5900-BK, 5900 (for #6 AWG contacts) |
| Equivalent Part Numbers | Sed 50A Contact Terminal SGD5915-T (#6 AWG compatible) |
| Replaces/Supersedes Part Numbers | SB50A-06, SGD5915-T, 1307, 5900 |
| Compatible With Models | Anderson SB® 50 two-pole DC connectors (uses #6 AWG contacts) |
Frequently Asked Questions
Q: What is the 800059594 contact set used for?
A: The 800059594 is a #6 AWG contact set designed for Anderson SB50 two-pole DC connectors. It is rated for 600V and 120A continuous (UL rating) or 50A (CSA rating). This contact set is commonly used in electric lift truck battery and power distribution applications.
Q: What are the cross-reference and equivalent part numbers for SKU 800059594?
A: The 800059594 is equivalent to Anderson Power Products part numbers 1307-BK, 1307, 5900-BK, and 5900 (all for #6 AWG contacts). It also cross-references to Sed part number SGD5915-T and replaces older part number SB50A-06.
Q: What material are the 800059594 contacts made from?
A: The 800059594 contacts are constructed of silver-plated copper. The silver plating provides excellent electrical conductivity and corrosion resistance, which is critical for reliable power connections in battery and DC distribution systems.
Q: What is the wire gauge size for the 800059594 contact set?
A: The 800059594 is designed for #6 AWG wire. Do not attempt to use this contact set with smaller or larger gauge wire, as improper sizing will result in poor electrical connection and potential overheating.
Q: Is the 800059594 compatible with all Anderson SB50 two-pole connectors?
A: The 800059594 is compatible with Anderson SB50 two-pole DC connectors rated for similar voltage and amperage specifications. Verify that your connector housing is rated for 600V and 120A continuous (UL) or 50A (CSA) before ordering.
