Product Description

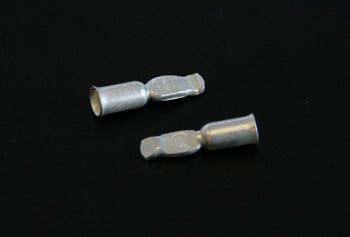

Contact set for SB50A electric lift truck connectors, suitable for #6 AWG wire, rated to 120 amps continuous and 50 amps hot plug, polycarbonate housing, silver/tin-plated copper contacts, UL94 V0, compatible with SB®50 series mating systems, designed for battery and power distribution applications.
Specifications
Electrical
| Voltage Rating | 600V AC/DC UL 1977 |
Material & Construction
| Housing Material | Polycarbonate (PC) |
| Spring Material | Stainless steel (contact retention) |
Frequently Asked Questions
Q: What are the voltage and current ratings for the 922329 contact set?
A: The 922329 contact set is rated for 600V AC/DC per UL 1977 with a continuous current rating of 120 amps and a hot plug current rating of 50 amps. It is designed for #6 AWG wire applications.
Q: What material composition and certifications does this contact set have?
A: The 922329 features a polycarbonate (PC) housing with silver/tin-plated copper contacts and stainless steel springs for contact retention. It carries a UL94 V0 flammability rating and is compatible with SB50 series mating systems for battery and power distribution applications.
Q: What equipment does the 922329 contact set fit?
A: The 922329 is designed for SB50A electric lift truck connectors and is compatible with SB50 series mating systems used in battery and power distribution applications on electric material handling equipment.
