Product Description

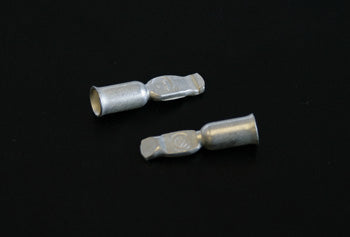

CONTACT SET (SB50A #6) for electric lift truck applications. Designed for 50A continuous duty at 24-48VDC, this SB903 contact set features copper alloy, tin-plated contacts for high conductivity and durability, integrates with #6 AWG conductor, and is compatible with electric lift truck SB50A connector blocks.
Specifications
Electrical
| Operating Voltage | Rated for use up to 48VDC systems |
Material
| Body Material | High-impact thermoplastic insulator |
| Contact Finish | Electro-tin plated per ASTM B545 |
Part Numbers
| Manufacturer Part Number | SB903 |
| OEM Reference | SB50A #6 |
| Compatible Equipment Type | Electric lift trucks with SB50A connector |
Frequently Asked Questions
Q: What is the voltage and current rating for the SB903 contact set?
A: The SB903 is rated for 50A continuous duty at 24-48VDC. This makes it suitable for low-voltage battery systems in electric lift trucks rather than high-voltage applications.
Q: What conductor gauge does the SB903 support?
A: The SB903 integrates with number 6 AWG conductor. This gauge is appropriate for the 50A rating and common in 24-48VDC lift truck battery interfaces.
Q: What is the contact material and finish on the SB903?
A: The SB903 features copper alloy contacts that are tin-plated to specification ASTM B545. This tin plating provides high conductivity and corrosion resistance in battery applications.
Q: What is the housing material for the SB903?
A: The SB903 uses a high-impact thermoplastic insulator housing. This material provides durability and electrical insulation for industrial material handling equipment.
Q: Which electric lift truck connector blocks are compatible with the SB903?
A: The SB903 is compatible with SB50A connector blocks used in electric lift trucks. Verify your equipment documentation to confirm SB50A compatibility before ordering.
