Product Description

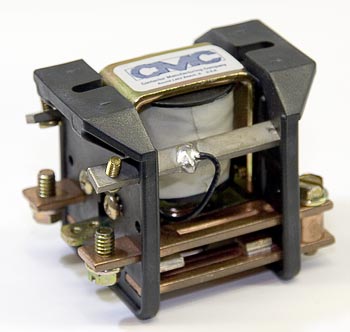

The 12VDC industrial contactor IC2800M611AD12A is engineered for electric lift truck control applications, delivering reliable circuit switching across pallet jacks, reach trucks, and powered stackers. This component features a DC continuous duty coil rated for indefinite energization, three normally open main power poles for primary load switching, and one mechanically linked normally closed auxiliary contact for interlock and safety circuits. Silver alloy contacts ensure superior conductivity and extended service life under frequent on/off duty cycles. Constructed to IEC 60947-4-1 and IEC 60947-5-1 standards with a 690V AC insulation rating, this contactor provides robust electrical isolation and voltage protection in modern lift truck drive systems.
Specifications
Component Standards
| Conformance | Constructed in accordance with IEC 60947-4-1, IEC 60947-5-1 |
Electrical
| Coil Voltage | 12VDC nominal |
| Contact Configuration | 3 normally open main poles |
| Auxiliary Contact | 1 normally closed, mechanically linked |
| Operating Coil Type | DC continuous duty |
| Rated Insulation Voltage | 690V AC (per IEC 60947-4-1) |
| Rated Operational Current | 12A at 400V AC (utilization category AC-3) |
| Maximum Switching Voltage | 690V AC |
| Minimum Switching Voltage | 17V AC/DC |
| Minimum Switching Current | 10 mA |
| Contact Material | Silver alloy |
| Mechanical Life | 10 million cycles |
| Electrical Life At Rated Load | 1 million cycles (AC-3 duty) |
Part Numbers
| Manufacturer Part Number | IC2800M611AD12A |
Frequently Asked Questions
Q: What are the main specifications of the IC2800M611AD12A industrial contactor?
A: The IC2800M611AD12A is a 12VDC industrial contactor with 3 normally open main power poles, 1 normally closed auxiliary contact (mechanically linked), DC continuous duty coil, silver alloy contacts, rated insulation voltage of 690V AC per IEC 60947-4-1, and panel or DIN rail mounting capability.
Q: What does DC continuous duty mean for the IC2800M611AD12A coil?
A: DC continuous duty rating indicates the contactor solenoid coil can remain energized indefinitely without thermal damage or coil burnout. This design is essential for electric lift truck applications where control circuits operate continuously during equipment use, with the contactor switching load circuits multiple times per minute.
Q: What electric lift truck brands is the IC2800M611AD12A compatible with?
A: This 12V industrial contactor is designed for electric pallet jacks, stack trucks, and reach trucks from major manufacturers including Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, and BT. Verify your equipment control voltage is 12VDC before ordering.
Q: What is the significance of the 690V AC rated insulation voltage?
A: The 690V AC insulation rating (per IEC 60947-4-1 industrial standard) indicates this contactor can safely isolate high-voltage circuits and withstand voltage stress without electrical breakdown. In electric lift trucks, this provides robust protection in main drive circuit switching applications.
Q: How do the silver alloy contacts affect contactor performance and lifespan?
A: Silver alloy contacts provide superior electrical conductivity, reduced arcing during switching, lower contact resistance, and extended operational lifespan compared to base metal contacts. In electric lift truck duty cycles with frequent on/off switching, silver contacts deliver improved reliability and reduced maintenance intervals.
Q: What is the function of the mechanically linked auxiliary contact?
A: The 1 normally closed auxiliary contact is mechanically coupled to the main poles, meaning it automatically opens whenever the 3 main poles close. This contact is used in control circuits for interlock logic, indicator lamps, or safety circuits that must respond to main contactor status without independent electrical control.
