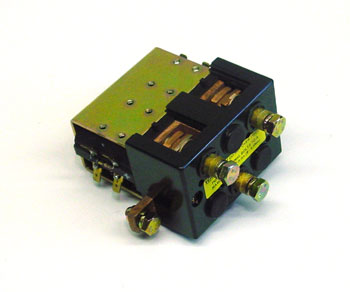

24VDC Single Pole Contactor for Electric Lift Trucks - Fits Yale
5203598-00
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
24VDC single pole, single throw, normally open contactor for electric lift truck applications. Rated for continuous 100A service, supplied with M8 stud terminals and spade coil connectors. Replaces CTR-24-227 and 800020423; supersedes CTR-24-319 and 800132570.
Specifications
Part Numbers & Compatibility
| Make | Yale |
| Part Number | 5203598-00 |
| Cross-Reference Part Numbers | CTR-24-227, 800020423 |
| Supersedes Part Number | CTR-24-319, 800132570 |
Electrical Specifications
| Nominal Coil Voltage | 24VDC |
| Ampacity (Intermittent) | Up to 230A at 30% duty cycle |
| Pull-In Voltage | ≤16.0VDC |
| Drop-Out Voltage | ≤6.0VDC |
Additional Specifications
| Coil Power Dissipation | 11.08W |
| Main Terminal Type | M8 stud terminal |
| Typical Pull-In Time | 20 ms |
Frequently Asked Questions
Q: Which models is the 5203598-00 compatible with?
A: The 5203598-00 is compatible with Yale electric lift truck models.
Q: What materials is the 5203598-00 made from?
A: The 5203598-00 is constructed from durable materials designed for long-term use in electric lift truck applications. It features a robust build to withstand typical operational conditions.
Q: How do I know if the 5203598-00 is the right replacement part for my equipment?
A: To ensure compatibility, verify that your equipment is one of the models listed as compatible with the 5203598-00. If you're unsure, consult your equipment's manual or contact us for assistance.
Q: What are the electrical specifications of the 5203598-00 contactor?
A: The 5203598-00 is a 24VDC single pole, single throw normally open contactor rated for continuous service. It features a pull-in voltage of 16.0VDC, drop-out voltage of 6.0VDC, and coil power dissipation of 11.08W. Peak ampacity reaches 230A at 30% duty cycle.
Q: What terminal types does the 5203598-00 use?
A: The 5203598-00 is supplied with M8 stud terminals for main power contacts and spade coil connectors for the 24VDC coil. Verify your equipment uses compatible terminal sizes and styles before ordering.
Q: What is the lifespan of a 24VDC contactor like the 5203598-00?
A: Typical lifespan depends on switching frequency and duty cycle. In continuous or intermittent service on electric lift trucks, contactors usually function reliably for 3-7 years. High-frequency switching or electrical stress may reduce life expectancy.
Q: Can the 5203598-00 be used in wet or outdoor environments?
A: Standard contactors are not sealed for wet or outdoor exposure. For wet environments or cold storage, verify environmental protection ratings. If moisture exposure is a concern, consult your equipment documentation or contact us to confirm suitability.
