Product Description

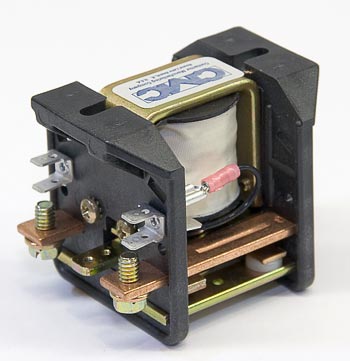

24VDC single-pole pump contactor for electric lift trucks, rated 150A continuous current. OEM replacement for Raymond 7130652 and Taylor Dunn 71-306-52. Features silver alloy contacts, phenolic resin housing, and panel mount with 5/16 inch stud terminals. Compatible with selected Raymond forklifts and Taylor Dunn carriers.
Specifications
Electrical
| Coil Voltage | 24VDC nominal |
| Contact Rating | 150A continuous current |
Material & Construction
| Case Material | Phenolic resin housing |
Part Numbers
| Manufacturer Part Number | 71-306-52 |
| OEM Part Number | 7130652 |
| Cross-Reference Part Numbers | 684-2461-212-17 |
| Equivalent Part Numbers | SK-08191203TB |
Performance Specifications
| Mechanical Life | 100,000 operations minimum |
| Electrical Life | 25,000 operations at rated load |
Frequently Asked Questions
Q: What is the current rating for contactor 71-306-52?
A: The 71-306-52 contactor is rated for 150 amperes continuous current. This part is designed as a single-pole pump contactor with a coil voltage of 24VDC nominal and a mechanical life rating of 100,000 operations minimum.
Q: What equipment does contactor 71-306-52 fit?
A: The 71-306-52 is an OEM replacement for Raymond 7130652 and Taylor Dunn 71-306-52 electric lift trucks. It is compatible with selected Raymond forklifts and Taylor Dunn carriers. Verify your equipment model and serial range before ordering.
Q: What materials does contactor 71-306-52 use?
A: The 71-306-52 features silver alloy contacts for electrical reliability and a phenolic resin housing for durability. The panel mount design uses 5/16 inch stud terminals.
Q: What are the cross-reference and equivalent part numbers for 71-306-52?
A: OEM part number 7130652 is equivalent to SKU 71-306-52. Additional cross-reference numbers include 684-2461-212-17 and SK-08191203TB. When ordering replacement parts, verify the exact part number matches your equipment requirements.
