Product Description

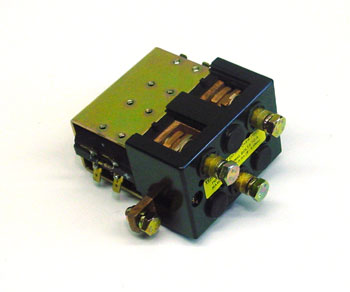

CONTACTOR (24 VOLT)
Specifications
Physical Specifications
| Voltage Rating | 24 Volt DC |
| Coil Type | 24V DC Solenoid Coil |
| Contact Material | Copper Alloy |
| Common Applications | Main pump control, lowering valve control, auxiliary circuit switching |
| Expected Service Life | 3-5 years under normal duty |
| Failure Indicators | Coil failure, contact chatter, stuck contacts, no response to voltage signal |
| Environmental Tolerance | Reduced lifespan in high-vibration, electrical surge, or corrosive environments |
Compatibility
| Compatible Equipment Types | Electric forklifts, electric pallet jacks, reach trucks, order pickers |
Frequently Asked Questions
Q: What is the voltage rating of the 800009413 contactor?
A: The 800009413 is a 24-volt DC contactor designed for electric lift truck control circuits. Never substitute with a different voltage rating, as incorrect voltage causes coil burnout or complete failure of the hydraulic or drive system control.
Q: Which electric lift truck models use the 800009413 contactor?
A: The 800009413 is compatible with electric forklifts and pallet jacks from Crown, Toyota, Raymond, Jungheinrich, Linde, and other major manufacturers that operate 24-volt DC systems. Verify your equipment voltage and control circuit specifications before ordering.
Q: What amperage does the 800009413 contactor handle?
A: The 800009413 is rated for a specific amperage load that depends on the application (main pump, lowering valve, or auxiliary circuit). Confirm the circuit amperage rating for your equipment to ensure the contactor matches the required current capacity.
Q: What causes the 800009413 contactor to fail?
A: Coil failure results from voltage spikes, short circuits, or prolonged operation at incorrect voltage. Contact chatter or inability to pull in indicates a weak coil or low battery. Stuck contacts prevent circuit opening, causing system malfunction. Replace if coil does not energize or contacts remain stuck.
Q: How long does the 800009413 contactor typically last?
A: Under normal duty, a 24-volt contactor performs reliably for 3 to 5 years in material handling equipment. Heavy switching cycles, electrical surges, or corrosive environments reduce lifespan. Replace immediately if coil failure or contact welding occurs.
Q: Are there equivalent part numbers for the 800009413 contactor?
A: The 800009413 is a direct replacement for OEM 24-volt contactors used in Crown, Toyota, Raymond, and other electric lift truck brands. Contact us with your equipment model and control circuit type to confirm cross-reference compatibility.
