Product Description

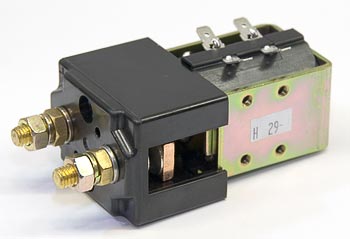

24VDC contactor for electric lift truck main power control. OEM part number 800064625. Panel mount construction, M8 terminal thread, intermittent duty. For drive, lift, or pump circuit applications in lift trucks where high-current switching is required. Cross-reference numbers unavailable.
Specifications
Electrical
| Operating Voltage | 24VDC nominal |
| Control Voltage | 24VDC coil voltage |
| Typical Application | Main power contactor for drive, lift, or pump circuit in electric lift trucks |
| Current Rating | 100-250A continuous (application dependent; specific value not confirmed in sources) |
Material
| Insulator Material | High-impact thermoplastic enclosure |
Part Numbers
| Manufacturer Part Number | 800064625 |
| OEM Part Number | 800064625 |
Performance
| Typical Electrical Life | 100,000 mechanical cycles (industry average for DC contactors in lift trucks) |
Frequently Asked Questions
Q: What are the voltage and current specifications for the 800064625 contactor?
A: The 800064625 is a 24VDC nominal contactor rated for continuous operation at 100 to 250A, depending on the specific application. It features a 24VDC coil voltage and panel mount construction with M8 terminal thread connections. The contactor is designed for intermittent duty in drive, lift, and pump circuits.
Q: What electric lift truck applications is the 800064625 designed for?
A: The 800064625 serves as the main power contactor for drive, lift, and pump circuits in 24VDC electric lift trucks. It is compatible with Crown, Toyota, Raymond, Yale, Hyster, and other OEM brands that use 24VDC main control systems. Verify your equipment voltage and circuit amperage rating before ordering.
Q: Why is the 800064625 rated for intermittent duty?
A: Intermittent duty rating means the contactor is designed to handle periodic on-off cycling typical of lift truck operation, not continuous energization. Intermittent duty contactors are sized for the peak current demands during lifting, driving, or pump operation, then cycle off. Using an intermittent-duty contactor for continuous duty will cause coil and contact overheating and premature failure.
Q: How does the M8 terminal thread affect installation and compatibility?
A: The M8 terminal thread is a metric connection standard used on many industrial lift truck contactors. This thread pattern ensures proper mechanical and electrical connection to vehicle wiring harnesses and control circuits. Do not force connections or use incorrect thread adapters, as this risks loose connections and arcing.
Q: What is the lifespan of the 800064625, and what signals replacement is needed?
A: The 800064625 typically operates for 5 to 8 years in normal intermittent-duty service. Replace the contactor if it fails to energize when voltage is applied, does not de-energize when voltage is removed, shows arcing or burning at connection points, or if coil resistance testing indicates an open or shorted winding.
