Product Description

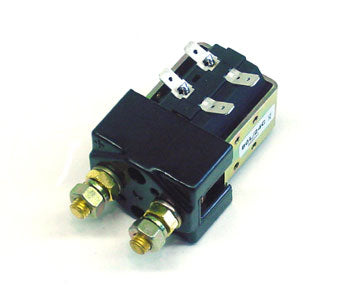

Industrial-grade 24VDC contactor, OEM SKU 800076344, designed for electric lift truck applications. Single pole, single throw configuration with 80A resistive rating, panel mount, silver alloy contacts, and cross-referenced to CT544-24, SW80-1005L, and other major interchange numbers.
Specifications
Electrical
| Coil Voltage | 24VDC intermittent duty |
| Rated Contact Current | 80A resistive at 24VDC |
| Maximum Make/Break Current | 80A make, 80A break at 24VDC |
Part Numbers
| OEM Part Number | 800076344 |
| Cross-Reference Part Numbers | 154548; 802820; CT544-24; SW80-1005L; SW80-113L; SW80-740L |
| Equivalent Part Numbers | CTR-24-289; 441701 |
Performance
| Cycle Life | 100,000 mechanical cycles (min) |
Frequently Asked Questions
Q: What is the 800076344 industrial contactor and what does it control?
A: SKU 800076344 is an industrial-grade 24VDC contactor designed for electric lift truck applications. This contactor is an electrically operated switch that manages power distribution to motors, solenoids, and other lift truck subsystems. It provides reliable on/off control for intermittent duty operation.
Q: What are the electrical specifications for the 800076344 contactor?
A: The 800076344 is rated for 24VDC intermittent duty coil operation with 80A resistive contact rating at 24VDC. Maximum make and break current is 80A. Verify your lift truck system voltage and circuit load match these specifications before installation.
Q: What are the cross-reference part numbers for the 800076344?
A: SKU 800076344 cross-references to the following equivalent part numbers: 154548, 802820, CT544-24, SW80-1005L, SW80-113L, and SW80-740L. It is also equivalent to CTR-24-289 and 441701. Use these numbers to identify compatible replacements or verify fitment.
Q: What is the contact configuration and mounting style for the 800076344?
A: The 800076344 is a single pole, single throw (SPST) contactor with silver alloy contacts. It features panel mount construction for integration into electric lift truck control enclosures. Confirm this configuration matches your control circuit wiring diagram.
Q: How do I identify if the 800076344 contactor is failing or needs replacement?
A: Common contactor failure symptoms include erratic motor operation, lifted trucks that do not respond to control input, audible chatter or buzzing from the control enclosure, or inability to engage load circuits. Contact our parts team if you experience these symptoms to diagnose whether the 800076344 requires replacement.
Q: Is the 800076344 rated for continuous or intermittent duty?
A: The 800076344 is rated for intermittent duty operation, which is appropriate for typical electric lift truck cycling. Intermittent duty allows cooling periods between operations. Do not operate this contactor in continuous duty applications without consulting our parts team.
