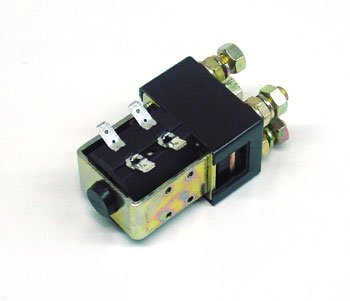

Electric Lift Truck Contactor 30A 24V AC
800133171
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
OEM electric lift truck contactor rated for 30 amps inductive and 40 amps resistive at 24V AC coil voltage, 2-pole assembly, compatible with wide-range of industrial vehicles. Includes Class B coil insulation and universal mounting hardware. Cross-references multiple major OEM and supplier part numbers.
Specifications
Part Numbers & Compatibility
| Part Number | 800133171 |
| Equivalent Part Numbers | Packard C230A |
| Compatibility | Compatible with wide-range of industrial vehicles |
| Cross References | Multiple major OEM and supplier part numbers |
Electrical Specifications
| Nominal Coil Voltage | 24V AC, 50/60 Hz |
| Rated Current | 30A inductive, 40A resistive |
| Maximum System Voltage | 600V AC |
| Locked Rotor Amps | 180A at 240V, 150A at 480V, 120A at 600V AC |
Additional Specifications
| Number of Poles | 2-pole configuration |
| Frame Material | Dielectric plastic enclosure and plated steel mounting hardware |
| Coil Insulation Class | Class B |
| Mounting Hardware | Universal mounting hardware |
Frequently Asked Questions
Q: What electric lift trucks is the 800133171 contactor compatible with?
A: The 800133171 is a 2-pole contactor rated for 30 amperes inductive and 40 amperes resistive. It is compatible with electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, and other major manufacturers using 24V AC coil voltage and 600V AC maximum system voltage.
Q: What are the electrical ratings and specifications for the 800133171?
A: The 800133171 has a 24V AC coil voltage at 50/60 Hz, rated for 30A inductive and 40A resistive loads. Maximum system voltage is 600V AC. Locked rotor amps are 180A at 240V, 150A at 480V, and 120A at 600V AC. The 2-pole configuration accommodates most heavy-duty electric truck circuits.
Q: What does the Class B coil insulation on the 800133171 mean?
A: Class B coil insulation indicates the contactor is rated for continuous operation at higher ambient temperatures compared to lower insulation classes. This design provides better reliability and longer service life in the thermal environment of electric lift truck cabinets and control systems.
Q: Are there equivalent part numbers for the 800133171 contactor?
A: The 800133171 is equivalent to Packard C230A and other replacement contactor models with matching 24V AC coil voltage, 2-pole configuration, and 30A inductive/40A resistive ratings. Confirm coil voltage, pole configuration, and amperage rating match your equipment before ordering.
Q: How long does the 800133171 contactor typically last?
A: Contactor lifespan depends on cycle frequency, electrical load consistency, coil voltage stability, and operating temperature. Heavy-duty trucks with frequent load cycling may require replacement sooner than light-duty applications. Replace contactors showing chattering, poor electrical contact, or coil heating issues.
Q: Does the 800133171 include mounting hardware?
A: The 800133171 includes universal mounting hardware to fit standard contactor enclosure DIN rail and panel layouts used across multiple lift truck brands. Verify your control panel configuration matches the 2-pole contactor mounting format.
Q: What makes the 800133171 a good replacement part?
A: The 800133171 is a reliable replacement part designed for use in electric lift trucks. It features Class B coil insulation, which enhances durability and performance in high-temperature environments. Its 2-pole configuration ensures compatibility with a wide range of industrial vehicles.
