Product Description

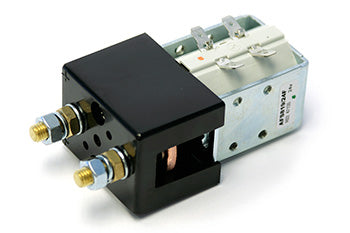

CONTACTOR (24 VOLT)
Frequently Asked Questions
Q: What is the coil voltage and control amperage for the 828-36003 contactor?
A: The 828-36003 is a 24-volt DC contactor with a coil that draws 0.5 to 1.5 amps during pull-in. The main contacts are rated to switch motor circuits carrying 200 to 300 amps at 24VDC to 80VDC, typical for electric lift truck drive motors.
Q: Which lift truck models use the 828-36003 contactor?
A: The 828-36003 fits Crown, Yale, Toyota, Raymond, and Hyster electric lift trucks with 24-volt control circuits and series-parallel motor switching. Verify that your truck uses a solenoid-actuated main contactor rated for 24VDC coil before ordering. Some models use 12-volt or 36-volt contactors instead.
Q: What happens if the 828-36003 contacts become pitted or stuck?
A: Pitted or welded contacts prevent full current flow to the motor, causing slow lift speed, hesitation during load pickup, or complete motor failure. Stuck contacts prevent the motor from disengaging and create runaway-truck hazard. If the contactor chatter, hums abnormally, or the truck fails to move consistently, replace the 828-36003 immediately.
Q: How often should the 828-36003 contactor be serviced or replaced?
A: High-duty contactors used in forklifts and stackers typically last 500 to 1500 operating hours before contacts begin to erode. In heavy-use warehouses, plan replacement every 6 to 12 months. Inspect the coil terminal connections and main contact lugs annually for corrosion or heat damage.
Q: What is a compatible cross-reference for the 828-36003?
A: The 828-36003 is equivalent to Curtis main contactors and Sevcon solenoid-type motor contactors in the 200 to 300 amp range at 24VDC coil. Confirm main contact amperage rating and coil voltage match before substituting. Do not use AC-rated contactors as replacements.
