Product Description

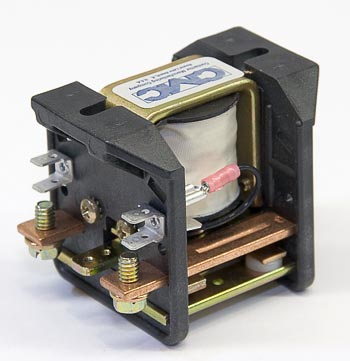

24VDC contactor for electric lift truck applications
Specifications
Electrical
| Voltage Type | 24VDC |
Material & Construction
| Typical Material | Metal construction with protective coatings |
Frequently Asked Questions
Q: What is the voltage specification for the 905309-GE contactor?
A: The 905309-GE is a 24VDC contactor designed specifically for electric lift truck applications. It controls 24-volt battery circuits in forklifts, electric pallet jacks, and other material handling equipment. Do not use this contactor in systems with different voltage supplies, as it will malfunction or fail.
Q: Which electric lift truck models are compatible with the 905309-GE contactor?
A: The 905309-GE fits 24VDC electric lift trucks from Crown, Toyota, Hyster, Yale, Raymond, Jungheinrich, and Linde within specified serial ranges. This contactor is used to control the main battery disconnect, hydraulic pump motor circuits, or traction motor functions depending on equipment design. Verify your lift truck model year and electrical schematic before ordering.
Q: What material construction and protective features does the 905309-GE have?
A: The contactor features metal construction with protective coatings to resist corrosion from moisture and industrial environments. Internal contacts are plated for conductivity. Sealed coil enclosures protect against dust and water ingress. The design meets industrial equipment durability standards for warehouse and outdoor use.
Q: What is the typical lifespan of the 905309-GE contactor in electric lift truck service?
A: Under normal duty cycles with proper voltage maintenance, this contactor typically operates for 4 to 7 years. Contact degradation and electrical faults are accelerated by high battery discharge rates, frequent on-off cycling, or sustained high current loads. Replace the contactor if it fails to engage reliably or exhibits welded contacts.
Q: Are there equivalent or cross-reference 24VDC contactors for the 905309-GE?
A: Cross-reference contactors exist from OEM manufacturers, but coil voltage, contact configuration, and mounting must match your lift truck electrical schematic exactly. Provide your equipment model and original electrical diagram, and we will confirm if alternative 24VDC contactors meet your circuit requirements and current ratings.
