Product Description

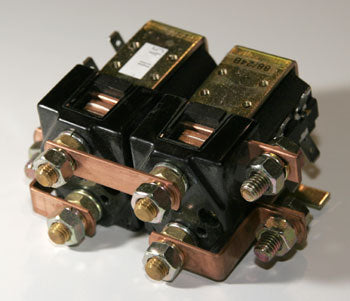

Caterpillar CTR-24-248 contactor is a 24VDC double pole double throw (DPDT) electrical relay rated for 80A intermittent duty, featuring silver alloy contacts and supplied with mounting brackets. Suited for electric lift truck applications, compatible with CAT W40XL and W40XT models up to serial number A218H-02151, and includes coil blowout functionality.
Specifications
Electrical
| Operating Voltage | 24VDC |
| Rated Current | 80 amperes (intermittent duty) |
Part Numbers
| OEM Part Number | CTR-24-248 |
Frequently Asked Questions
Q: What is the amperage rating for the CTR-24-248?
A: The CTR-24-248 is rated for 80A intermittent duty. Verify your circuit amperage requirements match this rating before ordering.
Q: What coil voltage does the CTR-24-248 require?
A: The CTR-24-248 requires 24VDC coil voltage for operation in electric lift truck circuits. Confirm your control circuit supplies 24VDC nominal.
Q: Which CAT lift truck models does the CTR-24-248 fit?
A: The CTR-24-248 is compatible with CAT W40XL and W40XT models up to serial number A218H-02151. Verify your equipment serial number matches this range before ordering to ensure proper fit.
Q: What type of contactor is the CTR-24-248?
A: The CTR-24-248 is a double pole double throw (DPDT) electrical relay rated for 80A intermittent duty. It features silver alloy contacts and includes mounting brackets for direct installation.
Q: What are the contact materials on the CTR-24-248?
A: The CTR-24-248 uses silver alloy contacts. Silver alloy provides reliable electrical conductivity and low contact resistance for intermittent duty applications in electric lift truck circuits.
Q: Does the CTR-24-248 include mounting hardware?
A: Yes, the CTR-24-248 is supplied with mounting brackets for bolt-on installation. The contactor includes coil blowout functionality for added circuit protection.
