Product Description

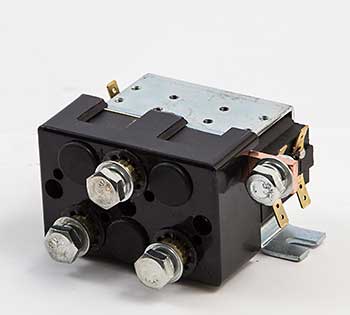

DC88-111 is a 24VDC motor reversing contactor designed for electric lift truck applications, rated at 100A continuous with double breaking silver alloy contacts, M8 main terminals, and cross-referenced to Albright DC88 series and equivalents.
Specifications
Electrical
| Coil Voltage | 24VDC nominal |
| Main Contact Circuit Voltage Range | 6VDC to 80VDC |
| Intermittent Current Ratings | 185A (30% duty), 160A (40% duty), 140A (50% duty), 130A (60% duty), 120A (70% duty) |
| Coil Power Consumption | 13–15W (prolonged), 7–13W (continuous) |
| Electromechanical Life | Mechanical: >5,000,000 operations; Electrical: 20,000 cycles at rated load |
| Contact Volt Drop (at 100A) | ≤50mV across new contacts |
| Auxiliary Contact Rating | 5A at 24VDC, 2A at 48VDC, 0.5A at 240VDC (resistive load) |
Part Numbers & Compatibility
| Manufacturer Part Number | DC88-111 |
| OEM Reference | Albright DC88-111 |
| Cross-Reference Part Numbers | DC88-11A, DC88B-111, DC88-24, DC88S (series-equivalent) |
| Supersedes | Supersedes earlier DC88-1 and DC88-24 revision models |
| Equivalent Part Numbers | SOL-DC88S (industry cross-ref.) |
Frequently Asked Questions
Q: What is the DC88-111 contactor rated for?
A: The DC88-111 is a 24VDC motor reversing contactor rated for 100A continuous duty. It features double breaking silver alloy contacts and M8 main terminals for electric lift truck applications.
Q: What are the cross-reference part numbers for the DC88-111?
A: The DC88-111 is cross-referenced to DC88-11A, DC88B-111, DC88-24, and DC88S series equivalent models. It supersedes earlier DC88-1 and DC88-24 revision models. SOL-DC88S is also an industry cross-reference.
Q: Can the DC88-111 replace the earlier DC88-1?
A: Yes. The DC88-111 supersedes the DC88-1 and DC88-24 revision models. It provides improved performance and reliability over earlier versions while maintaining the same mounting footprint and terminal configuration for most Crown, Toyota, and Raymond lift trucks.
Q: What material are the DC88-111 contacts made from?
A: The DC88-111 features double breaking silver alloy contacts. This composition provides excellent conductivity, resistance to oxidation, and durability under heavy cycling typical of industrial lift truck applications.
Q: Is the DC88-111 compatible with Albright DC88 series equipment?
A: Yes. The DC88-111 is fully compatible with Albright DC88 series contactors and lift trucks using equivalent Albright reversing contactor designs. Verify your current contactor part number and mounting configuration before ordering.
