Product Description

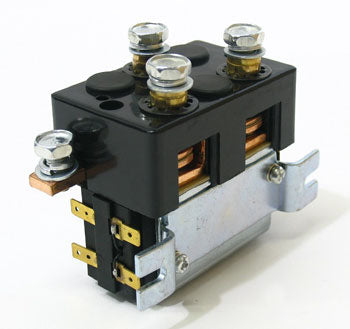

DC88-207 is a heavy-duty 24VDC monoblock contactor designed for electric lift truck and motor reversing applications, rated for 100A continuous and up to 185A intermittent duty. Engineered with silver alloy double break contacts, M8 stud terminals, and a monoblock body for mounting in horizontal or vertical orientation. Supplied by Albright and compatible with leading industrial lift equipment.
Specifications
Electrical Specifications
| Coil Voltage | 24VDC |
| Coil Voltage Range | 6-240VDC available |
| Coil Power Dissipation (Continuous Duty) | 7-13W |
| Typical Pull-In Time | 20ms |
| Typical Drop-Out Time (without suppression) | 5ms |
| Auxiliary Contact Rating | 5A at 24VDC (resistive) |
Material & Construction
| Frame Construction | Monoblock body, welded terminals |
Mechanical Specifications
| Intermittent Current Rating - 30% Duty | 185A |
| Intermittent Current Rating - 40% Duty | 160A |
| Intermittent Current Rating - 50% Duty | 140A |
| Intermittent Current Rating - 60% Duty | 130A |
| Intermittent Current Rating - 70% Duty | 120A |
| Fault Current Breaking Capacity (5ms, No Blowouts) | 800A at 48VDC |
| Fault Current Breaking Capacity (5ms, Blowouts) | 600A at 80VDC |
| Mechanical Durability | >5,000,000 cycles |
| Mounting Bracket Orientation | Horizontal or vertical (M8 studs to point up if vertical) |
Part Numbers & Compatibility
| OEM Part Number | DC88-207 |
| Manufacturer Part Number | DC88-207 |
| Equivalent Part Number | DC88-1, DC88 |
| Supersedes | DC88-200 Series |
| Cross-Reference Part Numbers | DC88-207, DC88-1, DC88 (Albright) |
Frequently Asked Questions
Q: What is the DC88-207 contactor rated for continuous duty?
A: The DC88-207 is rated for 100A continuous duty at 24VDC. It also supports intermittent duty ratings: 185A at 30% duty cycle and 160A at 40% duty cycle, making it suitable for heavy-duty electric lift truck motor reversing applications.
Q: What makes the DC88-207 different from the DC88-1?
A: The DC88-207 is an upgraded monoblock contactor with enhanced intermittent duty capability (185A at 30% duty versus standard ratings). It features a heavier-duty design with silver alloy double break contacts and is rated for 100A continuous, making it suitable for high-cycle electric lift truck operations.
Q: What terminal type does the DC88-207 use?
A: The DC88-207 uses M8 stud terminals for main connections. This standard terminal type is compatible with most Crown, Toyota, Raymond, and equivalent electric lift truck wiring harnesses. Verify stud diameter and thread pitch before ordering.
Q: Can the DC88-207 be mounted horizontally or vertically?
A: Yes. The DC88-207 monoblock body is engineered for mounting in either horizontal or vertical orientation. Position the contactor according to your lift truck frame layout and available space. Ensure adequate ventilation around the coil and contacts.
Q: What part numbers does the DC88-207 replace or cross-reference?
A: The DC88-207 supersedes the DC88-200 Series. It is equivalent to DC88-1 and the DC88 base model. Cross-reference part numbers include DC88-207, DC88-1, and DC88 (Albright). Confirm your current part number for direct compatibility.
