24-VOLT Contactor for Electric Lift Truck - Fits Raymond, Baker W60Z, W65Z, W80Z
DS225980
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

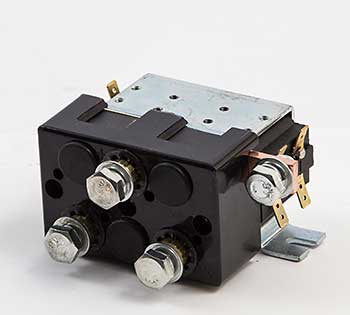

24-Volt Electrical Contactor for Electric Lift Trucks
The DS225980 is a direct replacement 24-volt contactor that controls high-amperage motor circuits in electric pallet jacks and lift trucks. This heavy-duty electrical component functions as a relay, switching power to the hydraulic pump motor and drivetrain under control system direction. Designed for reliable performance in warehouse, dock, and material handling environments, the DS225980 handles the demanding duty cycles of commercial electric lift truck operations. Essential for maintaining safe and efficient electrical system function.
Specifications
Part Numbers & Compatibility
| Make | Raymond, Baker, Crown, Yale, Hyster, Toyota |
| Model | W60Z, W65Z, W80Z, MPB045VG, MPB045VH, MPW065E, MPW080E, B60ZAC2, B60-80ZHD2, W45ZHD, HY55-PT, PCS30UT |
| Part Number | DS225980 |
| Application | Electric pallet jacks, electric lift trucks, warehouse equipment |
Electrical Specifications
| Voltage | 24 VDC |
| Control Voltage | 24 VDC |
| Amperage Rating | 150-300 Amps (varies by motor load) |
Additional Specifications
| Contact Configuration | Heavy-duty high-amperage relay switch |
| Function | Motor circuit relay and power contactor |
| Compatible Systems | 24-volt hydraulic lift truck electrical systems |
Frequently Asked Questions
Q: Which electric lift truck models is the DS225980 compatible with?
A: The DS225980 is compatible with a range of electric lift truck models including W60Z, W65Z, W80Z, MPB045VG, MPB045VH, MPW065E, MPW080E, B60ZAC2, B60-80ZHD2, W45ZHD, HY55-PT, and PCS30UT. It is suitable for use with lift trucks from brands such as Raymond, Baker, Crown, Yale, Hyster, and Toyota.
Q: What materials is the DS225980 made from and how durable is it?
A: The DS225980 is constructed from high-quality materials designed for durability and long-term use in industrial environments. It is built to withstand the demands of frequent operation and electrical stress, ensuring reliable performance over time.
Q: How can I determine if the DS225980 needs to be replaced?
A: Signs that the DS225980 may need replacement include electrical faults, intermittent motor response, or visible damage to the contacts. If the contactor is making unusual noises, not engaging properly, or causing motor failure, it should be inspected and replaced if necessary.
Q: What is the DS225980 used for on electric lift trucks?
A: The DS225980 is a 24-volt electrical contactor that switches high-amperage motor circuits on and off. It functions as a relay controlled by the lift truck control system to engage or disengage power to the hydraulic pump motor and drivetrain. It is essential for safe operation of the lift truck electrical system.
Q: What control voltage does the DS225980 require?
A: The DS225980 is a 24VDC contactor, meaning the control circuit must supply 24 volts DC to the contactor coil to activate it. It is used on 24-volt electric pallet jacks and lift trucks from Crown, Toyota, Raymond, Yale, and Hyster as well as compatible aftermarket equipment.
Q: How do I know if my DS225980 contactor is failing?
A: Symptoms of a failing DS225980 include the motor not responding to the control switch, intermittent motor engagement, clicking sounds from the contactor but no motor response, or stuck contacts. If the motor draws power but does not move, or if there is no audible click when the switch is pressed, the contactor may need replacement.
Q: Can the DS225980 be cleaned and reused or must it be replaced?
A: If the contactor contacts are dirty or corroded but not burned or pitted, they may be cleaned. However, once the silver plating is worn away or contacts are damaged, replacement is necessary. A burned or welded contactor cannot be safely restored and must be replaced with a new DS225980 unit.
